CVE-2024-0012 Palo Alto 认证绕过漏洞分析

date: 2025-05-06 22:25:09

漏洞信息

漏洞编号：CVE-2024-0012

漏洞名称：Palo Alto Networks PAN-OS Management 管理端权限绕过漏洞

漏洞原理：nginx 配置问题导致在处理 .js.map$ 路由的时候无需身份验证，导致认证绕过，可以配合 CVE-2024-9474 实现命令执行。

环境搭建

搭建版本：11.0.2

出现问题：vm login 登不上，解决方法等待系统可能还在初始化。初始化过程中会出现 IP 地址，WEB 的账号密码和 CLI 是相通的，可以在 WEB 上面修改。

默认用户密码：admin

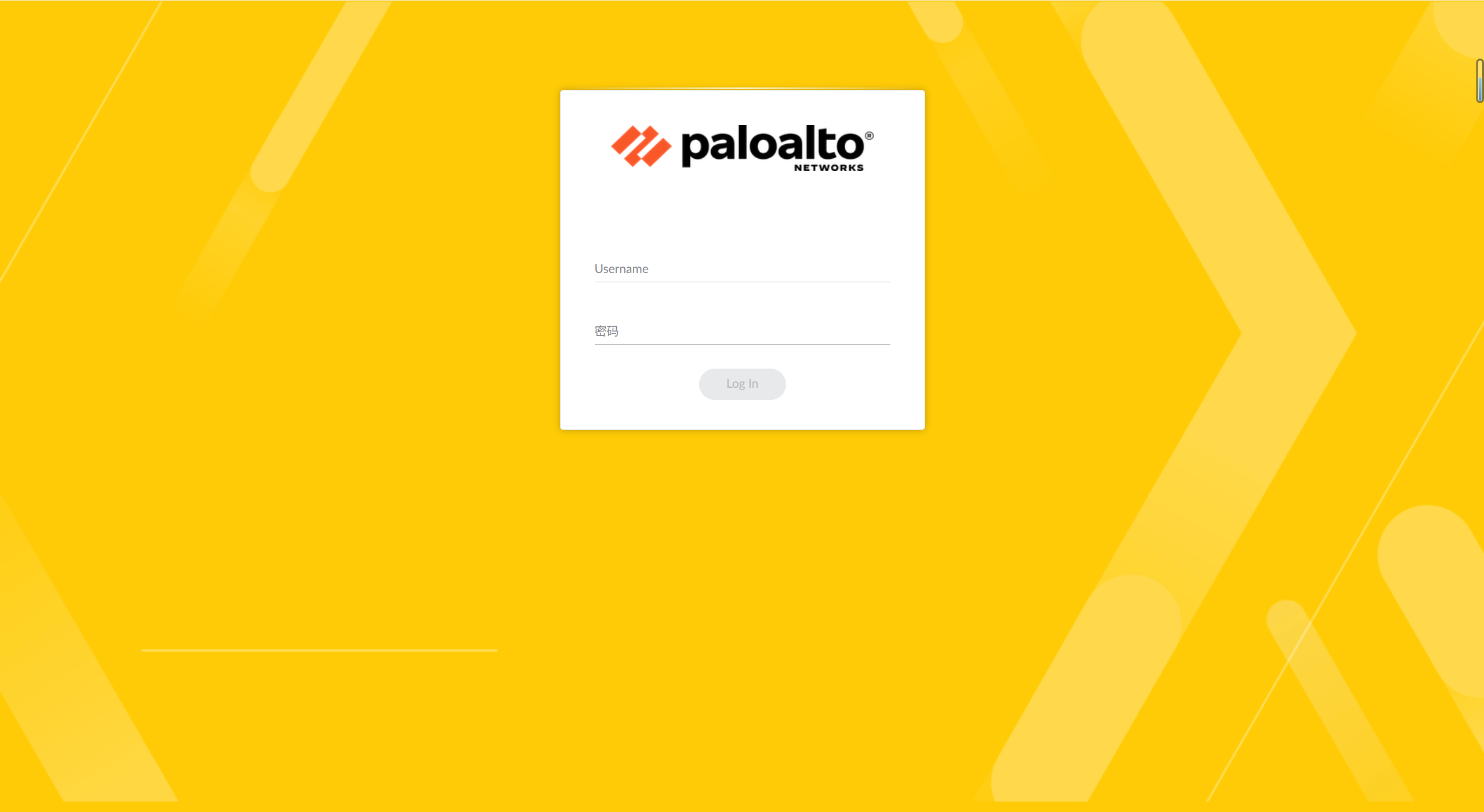

https://172.253.1.163

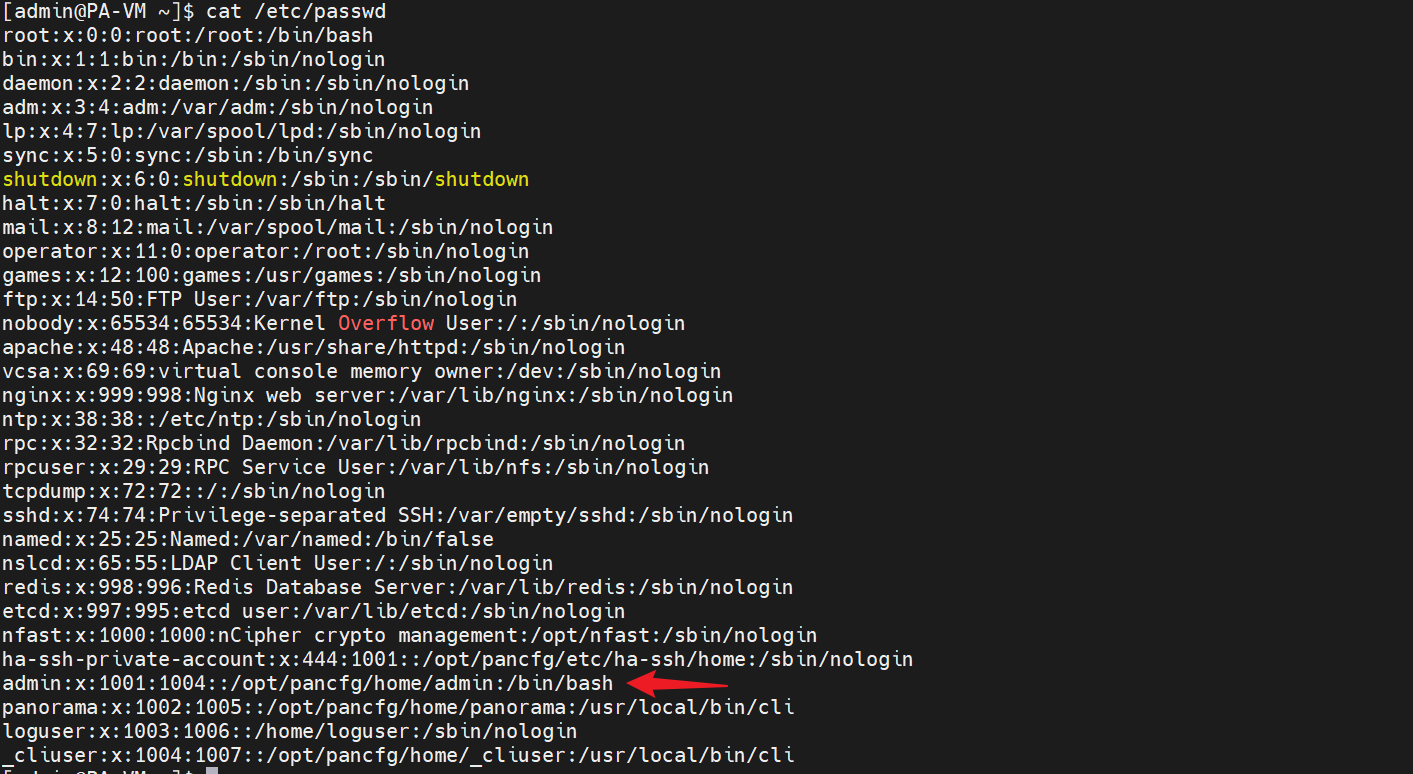

登录后 CLI 的，通过 RCE 漏洞修改 admin 用户的 shell。

1	`usermod -s /bin/bash admin`

测试过直接添加一个用户（通过执行 shell 脚本，漏洞有长度限制），可以通过 admin 切换到该用户，但是不能直接登录。

1	`usermod -aG root admin`

下载链接：

https://mirror.cloudpropeller.com/paloalto/vm-series/PA-VM-ESX-11.1.4.ova
https://mirror.cloudpropeller.com/paloalto/vm-series/PA-VM-ESX-11.1.4-h7.ova
https://mirror.cloudpropeller.com/paloalto/vm-series/PA-VM-ESX-10.1.9-h1.ova
https://mirror.cloudpropeller.com/paloalto/vm-series/PA-VM-ESX-11.0.2.ova
https://download.cloudcyte.com/VMs/PA-VM-ESX-10.1.7.ova

环境分析

基本架构

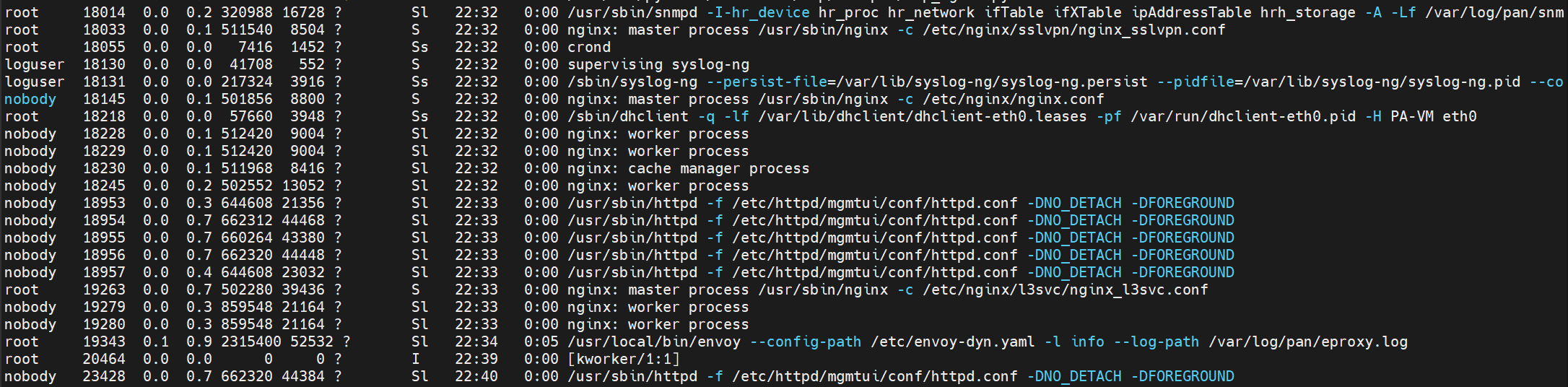

通过进程可以发现有：

httpd => apache

nginx

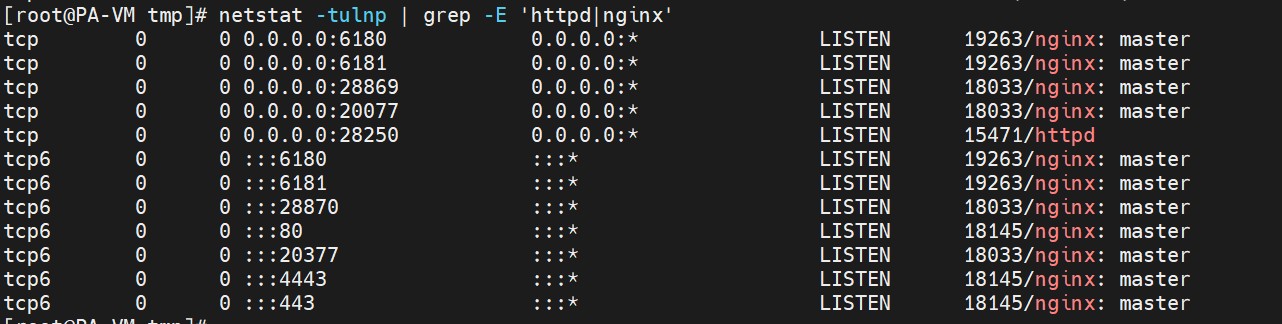

1	`netstat -tulnp \| grep -E 'httpd\|nginx'`

nginx 监听 80,443

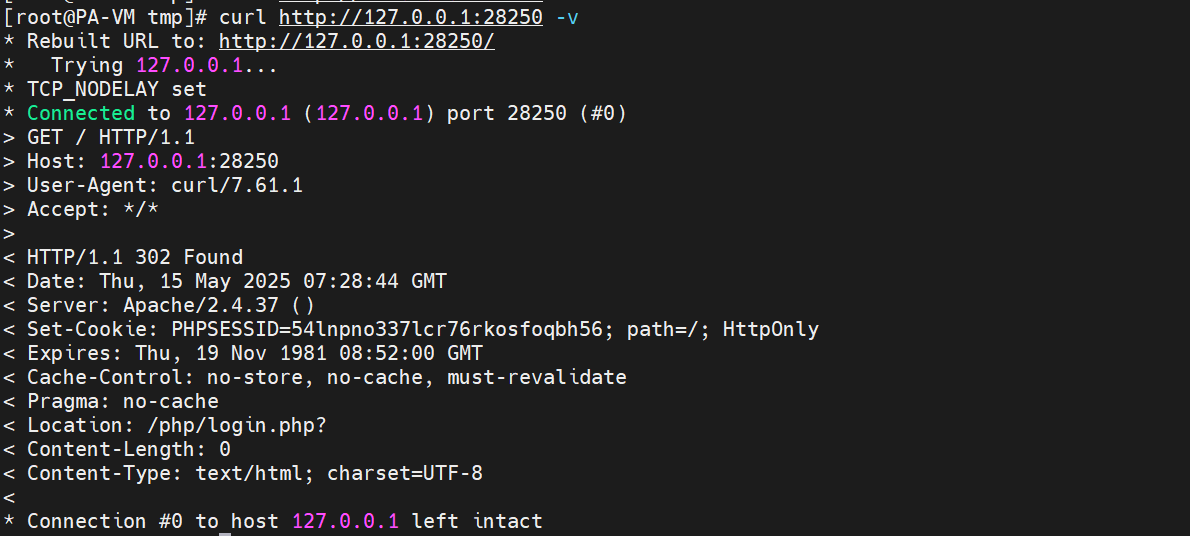

apache 监听 28250

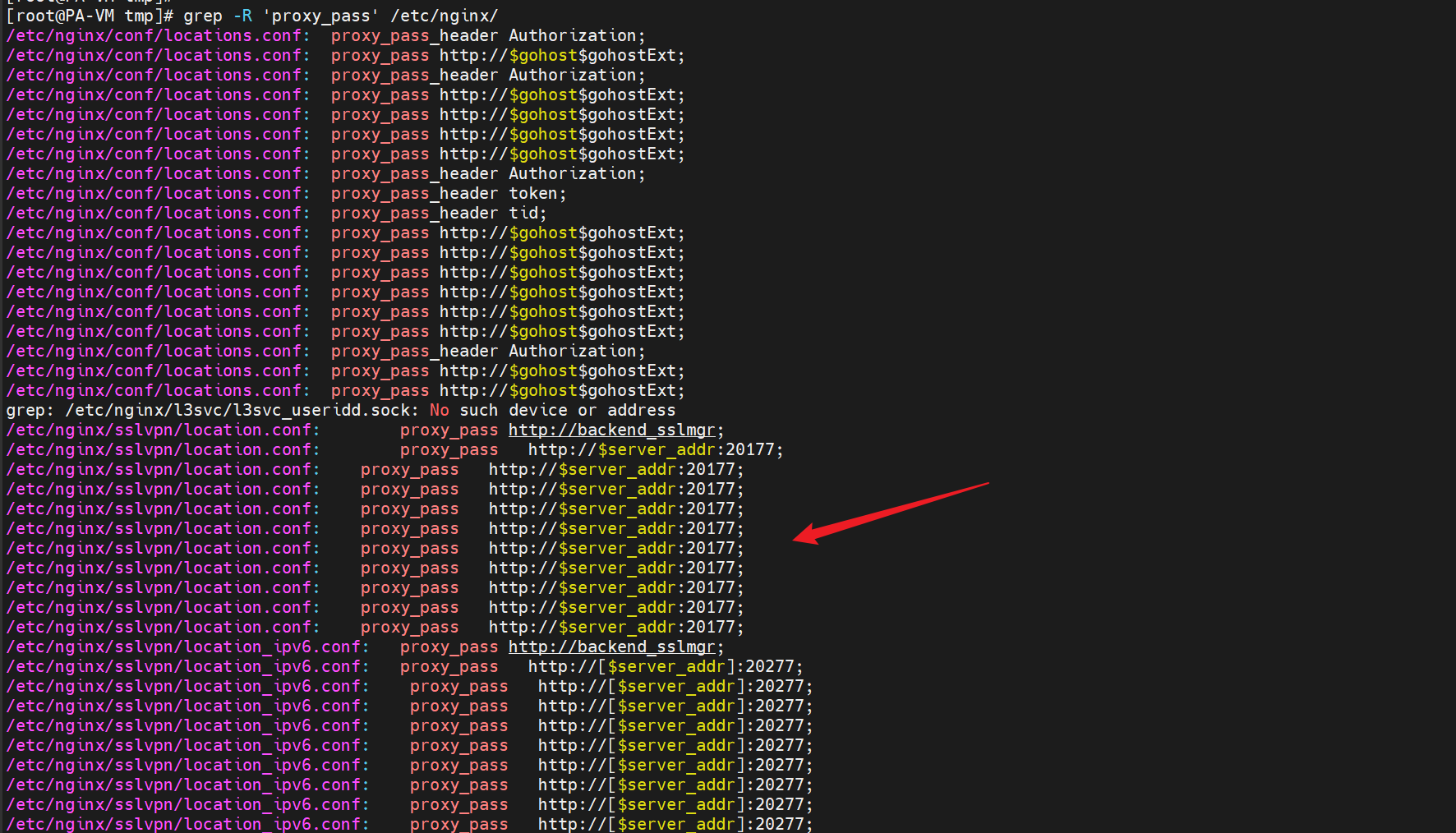

1	`grep -R 'proxy_pass' /etc/nginx/`

所以可以知道是 Apache + PHP 提供 WEB 服务，Nginx 作为反向代理

1	`request => nginx(443) => apache(28250) => php`

apache

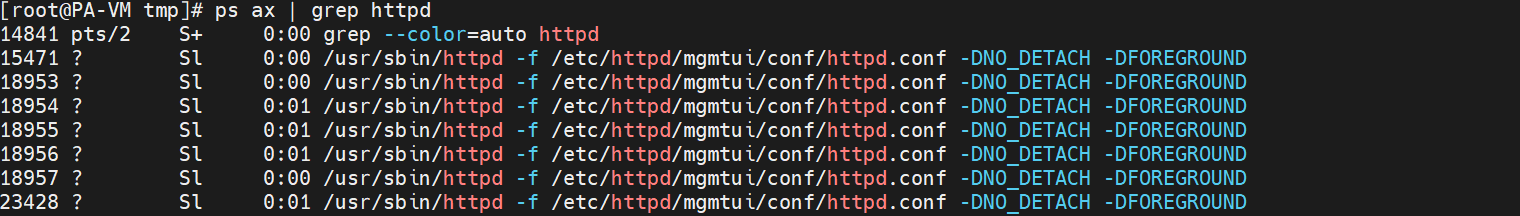

所以 WEB 其实是由 apache 启动的，查看 apache 配置：

1 2	`cat /etc/httpd/mgmtui/conf/httpd.conf grep -Ev '^\s#\|^\s$' /etc/httpd/mgmtui/conf/httpd.conf`

# Apache 配置文件、模块等的根目录（并非网站根目录）
ServerRoot "/etc/httpd/mgmtui"
# Apache 启动后记录 PID 的位置
PidFile "/var/run/mgmtui/httpd.pid"
# 核心转储文件保存目录
CoreDumpDirectory "/var/cores"
# Apache 监听本地 28250 端口
Listen 28250

# 监听所有 IP 的 28250 端口
<VirtualHost _default_:28250>
    # 设置环境变量，抓取 Authorization 头内容
    SetEnvIf Authorization "(.*)" _HTTP_AUTHORIZATION=$1
</VirtualHost>

# 加载 conf.modules.d 配置
Include conf.modules.d/*.conf

User nobody
Group nobody
ServerName 127.0.0.1
# WEB 根目录
DocumentRoot "/var/appweb/htdocs"

# 如果访问 /PAN_help/*.css|js|html|htm，重写为 .gz 文件（用于前端资源压缩加载）
<Location "/">
    DirectorySlash off
    RewriteEngine on
    RewriteRule ^(.*)(\/PAN_help\/)(.*)\.(css|js|html|htm)$ $1$2$3.$4.gz [QSA,L]
    AddEncoding gzip .gz
    Options Indexes FollowSymLinks
    Require all granted
</Location>

# 禁止访问 .htaccess 等以 .ht 开头的文件
<Files ".ht*">
    Require all denied
</Files>
<Files "*.css.gz">
    ForceType text/css
</Files>
<Files "*.js.gz">
    ForceType application/javascript
</Files>
<Files "*.html.gz">
    ForceType text/html
</Files>
<Files "*.htm.gz">
    ForceType text/html
</Files>
ErrorLogFormat "%{cu}t %l [%P %{g}T] %F: %E: %M"
ErrorLog "/var/log/pan/mgmt_httpd_error.log"
LogLevel info
LogFormat "%>s %t %T %b %U \"%{User-Agent}i\"" combined
LogFormat "%>s %t %T %b %U \"%{User-Agent}i\"" common
LogFormat "%>s %t %T %b %U \"%{User-Agent}i\"" combinedio
CustomLog "/var/log/pan/mgmt_httpd_access.log" combined
TypesConfig /etc/httpd/mime.types
AddType application/x-compress .Z
AddType application/x-gzip .gz .tgz
AddDefaultCharset UTF-8
MIMEMagicFile conf/magic
EnableMMAP off
FileETag None

子配置：

ServerRoot "/etc/httpd/mgmtui"
Include conf.modules.d/*.conf

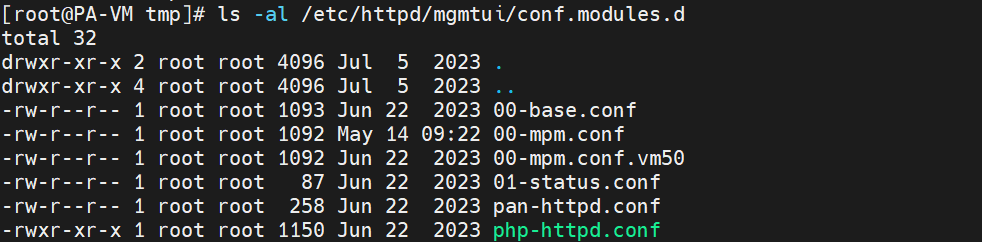

ls -al /etc/httpd/mgmtui/conf.modules.d

1	`grep -Ev '^\s#\|^\s$' /etc/httpd/mgmtui/conf.modules.d/php-httpd.conf`

# 加载 PHP7 模块，使 Apache 能解析 .php 文件
LoadModule php7_module ../modules/libphp7.so

# 禁止 Web 客户端访问以 .user.ini 命名的文件（通常用于 PHP 的用户级配置）
<Files ".user.ini">
   Order allow,deny      # 默认 deny 优先
   Deny from all          # 拒绝所有访问
   Satisfy All            # 所有条件都需满足（主要用于兼容旧版 Apache）
</Files>

# 将 .php 文件交给 PHP 模块处理
AddHandler application/x-httpd-php .php

# 指定 php.ini 的位置（PHP 配置文件）
PHPINIDir "/etc/httpd/mgmtui"

# 当访问目录时，默认首页文件为 index.php
DirectoryIndex index.php

# 特殊情况：将名为 ocsp 的文件（无扩展名）当作 PHP 文件处理
<FilesMatch ^ocsp$>
   SetHandler application/x-httpd-php
</FilesMatch>

PHP 配置文件：

1	`grep -vE '^\s;\|^\s$' /etc/httpd/mgmtui/php.ini`

[PHP]

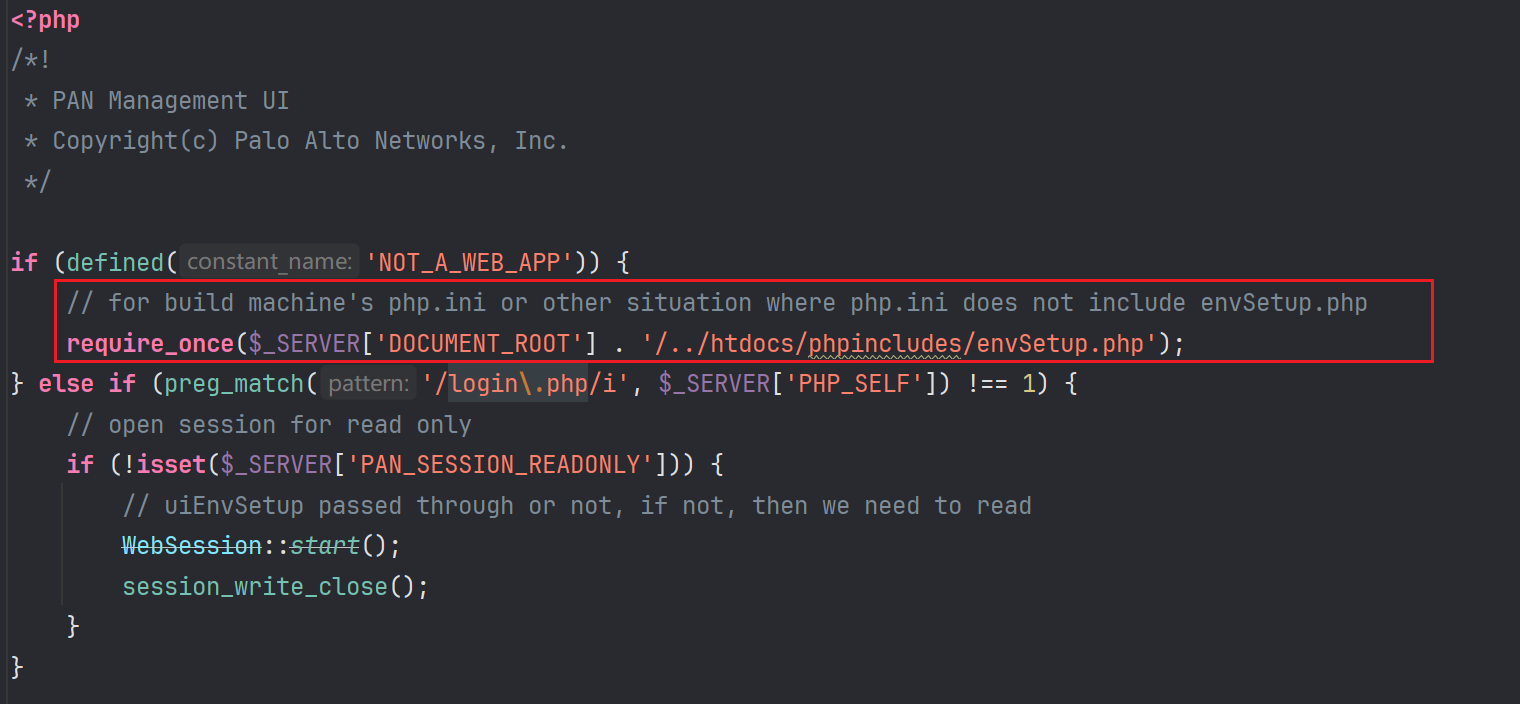

auto_prepend_file = uiEnvSetup.php ; PAN-MODIFIED
default_mimetype = "text/html"
default_charset = "UTF-8"
include_path = ".:/var/appweb/htdocs/phpincludes:/usr/lib64/php/modules" ; PAN-MODIFIED
extension_dir = "/usr/lib64/php/modules" ; PAN-MODIFIED - likely not needed. it is already working

auto_prepend_file：在每个PHP脚本开始执行前自动包含进来
include_path：设置include()或require()函数包含文件的参考路径
extension_dir：php 扩展目录

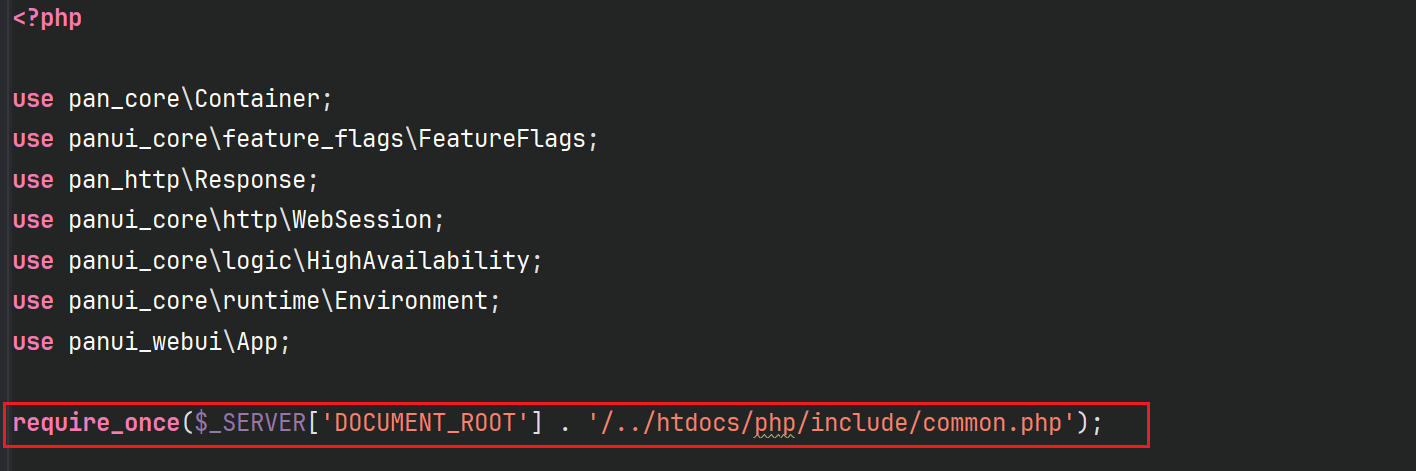

1	`/var/appweb/htdocs/index.php`

1	`request => nginx(443) => apache(28250) => php(php.ini,index.php) => envSetup.php => target.php`

打包 web 目录分析。

1	`tar -czvf htdocs.tar.gz /var/appweb/htdocs/`

nginx

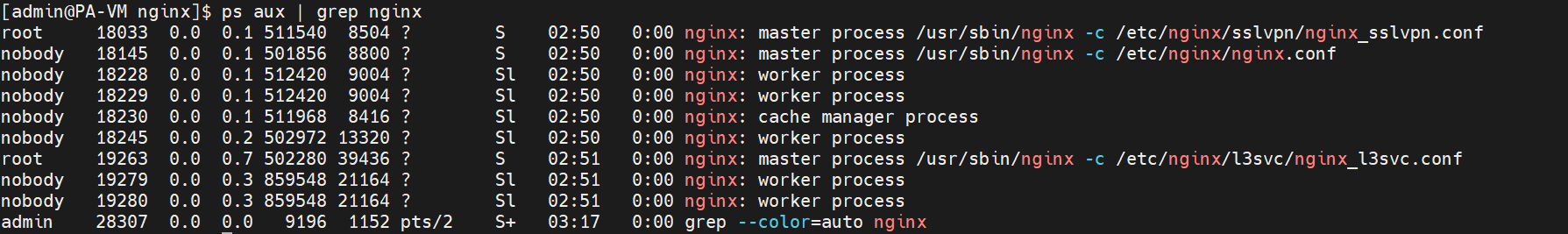

1	`ps aux \| grep nginx`

1	`tar -czvf nginx.tar.gz /etc/nginx`

nginx.conf：

http {
  # 定义上游服务器, request => nginx => backend_mgmt
  upstream backend_mgmt {
    server 127.0.0.1:28250;
  }
  # 上游服务器返回的跳转处理: 28250 => Location http://xxx:28250/php/login.php => Location http://xxx:80/php/login.php(nginx)
  proxy_redirect http://$host:28250/ $scheme://$host:$server_port/;
  proxy_redirect http://$proxy_host:28250/ $scheme://$host:$server_port/;



  # https server
  server {
    listen [::]:443 ssl default_server ipv6only=off;
    listen [::]:4443 ssl ipv6only=off;

    # $gohost 表示上游服务
    set $gohost "backend_mgmt";
    set $devonly 0;
    set $gohostExt "";

    set $wf_pub "wildfire.paloaltonetworks.com";
    set $wf_pri "";
    # 包含了一个子配置
    include conf/locations.conf;
  }

  # http server
  server {
    listen [::]:80 ipv6only=off;

    # include location rules
    set $gohost "backend_mgmt";
    set $devonly 0;
    set $gohostExt "";

    set $wf_pub "wildfire.paloaltonetworks.com";
    set $wf_pri "";

    include conf/locations.conf;
  }
}

conf/locations.conf

# 允许的请求方法
add_header Allow "GET, HEAD, POST, PUT, DELETE, OPTIONS";
if ($request_method !~ ^(GET|HEAD|POST|PUT|DELETE|OPTIONS)$) {
  return 405;
}

# rewrite_log on;

# static ones
# 统计
location /nginx_status {
  stub_status on;
  access_log off;
  allow 127.0.0.1;
  deny all;
}

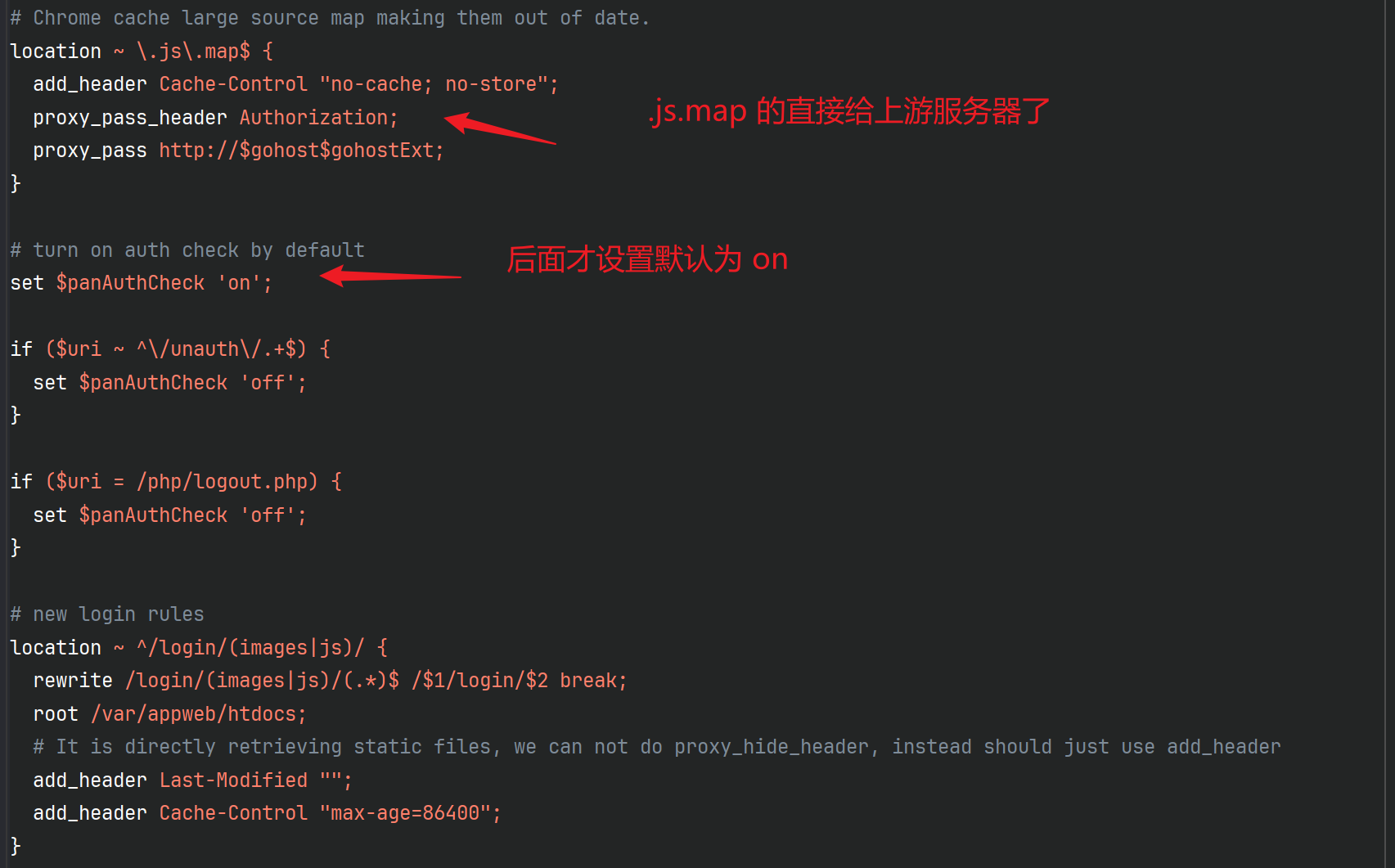

# Chrome cache large source map making them out of date.
# 解决 Chrome 缓存大型 source map 文件导致它们过时的问题
location ~ \.js\.map$ {
  add_header Cache-Control "no-cache; no-store";    # 不缓存不存储

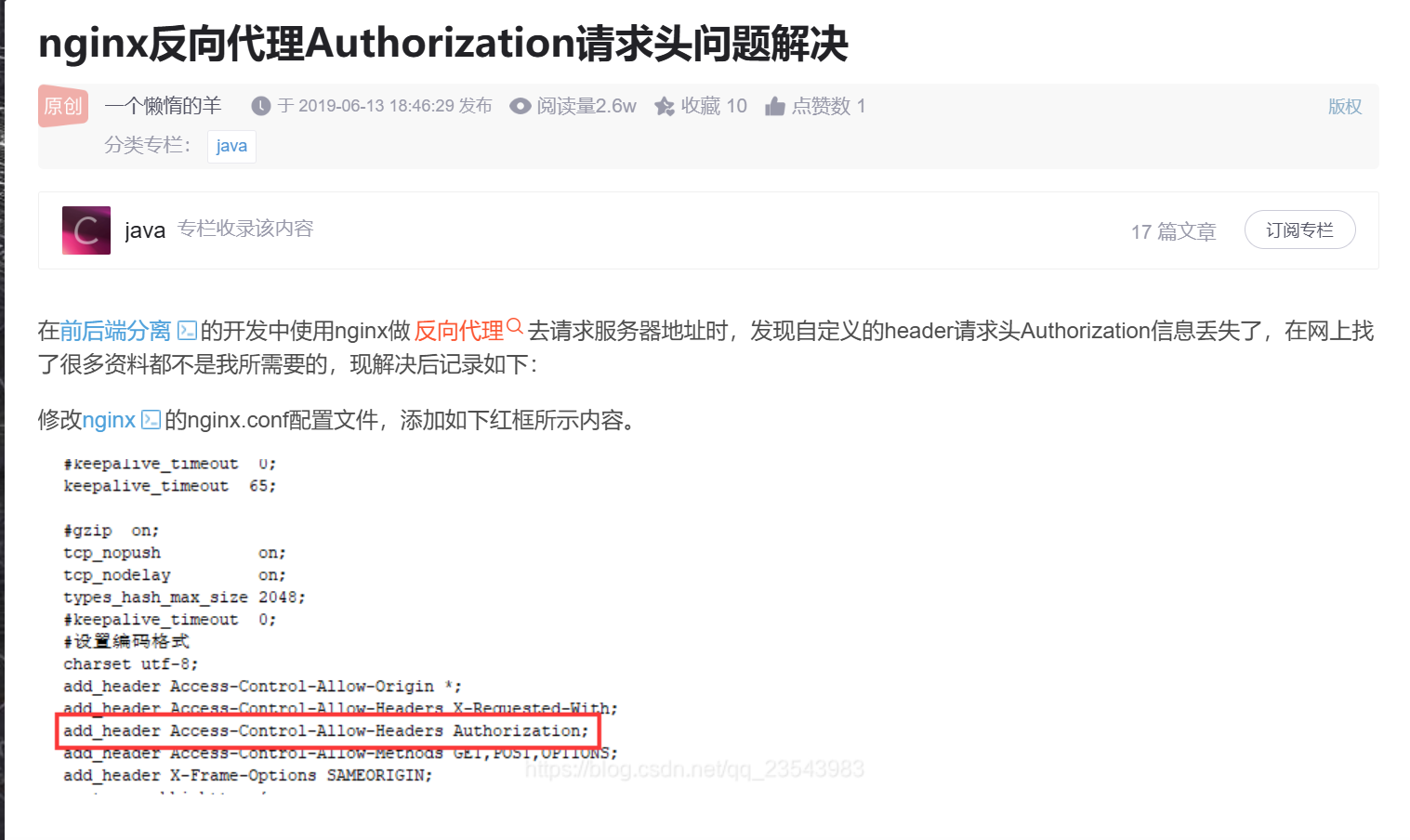

  proxy_pass_header Authorization;  # 是将客户端请求中的 Authorization 头传递给上游服务器，Authorization nginx 是默认会过滤掉的，所以需要显式的设置传输到上游服务器
  proxy_pass http://$gohost$gohostExt;  # 传输给上游服务
}

# turn on auth check by default
# 默认设置

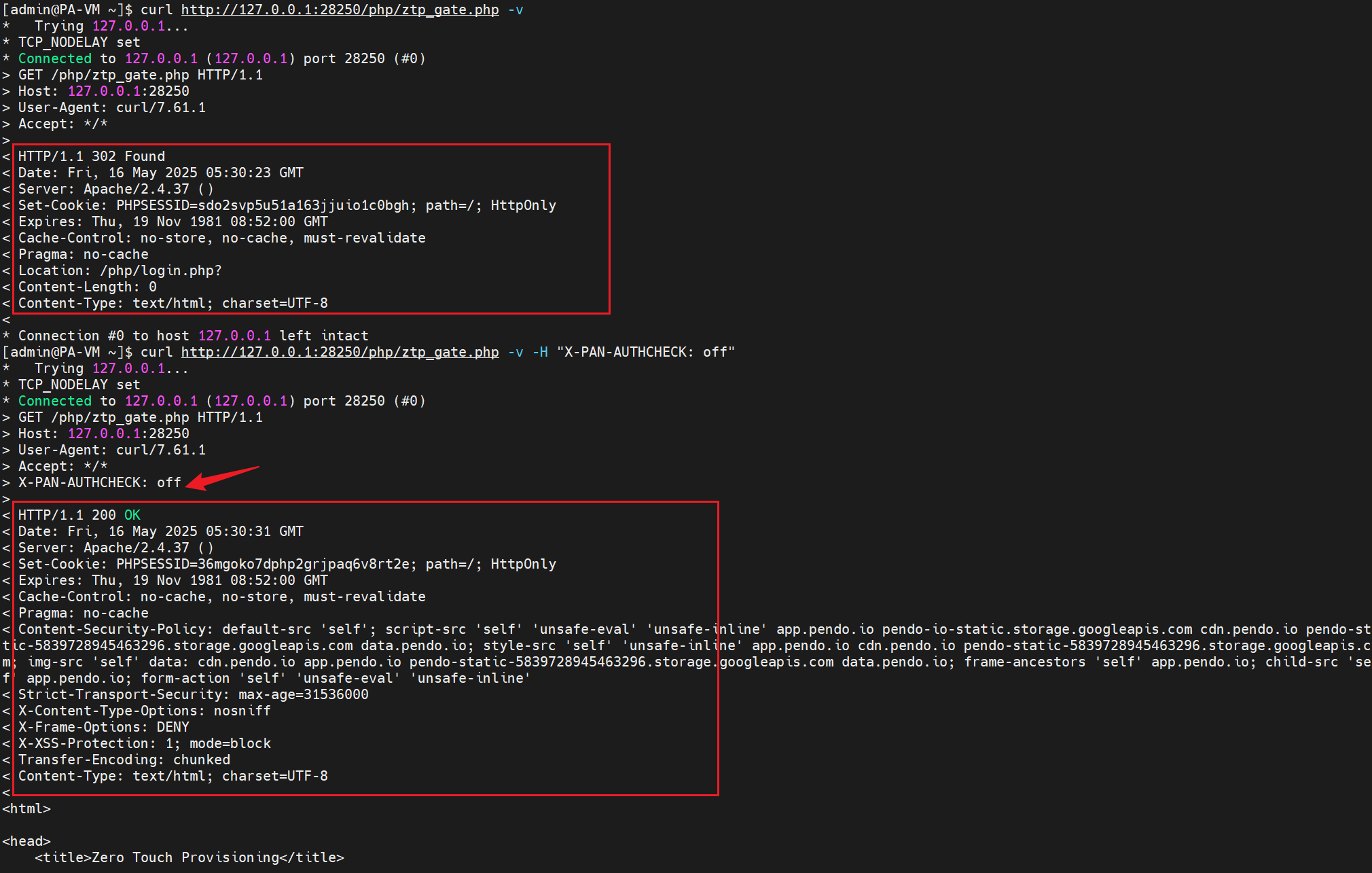

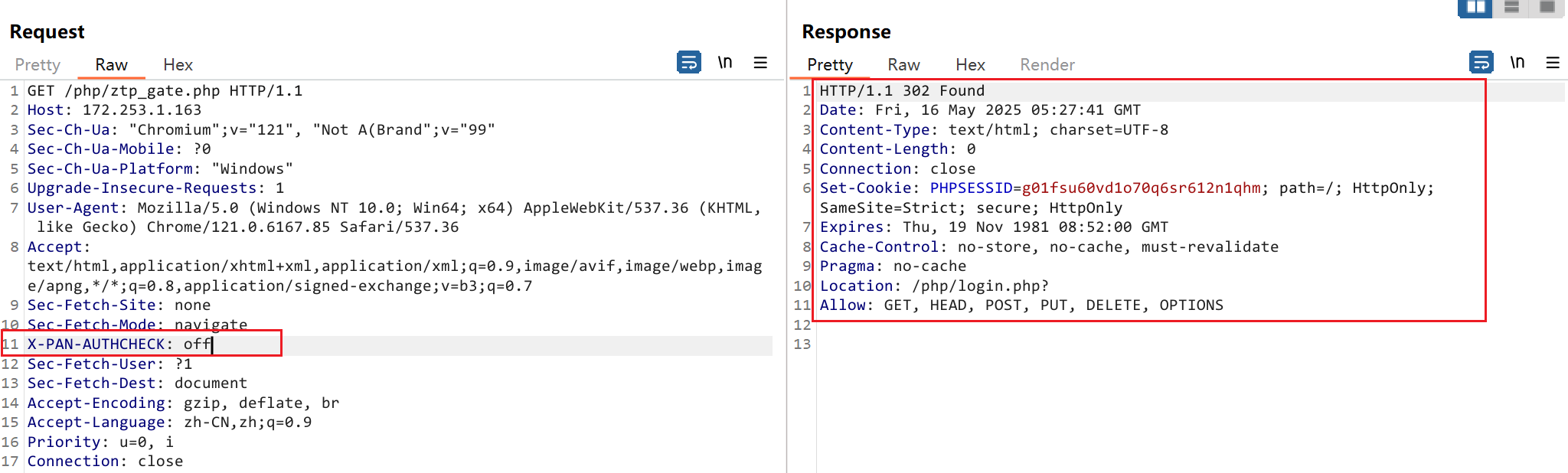

set $panAuthCheck 'on';

# unauth 的时候不检查认证
if ($uri ~ ^\/unauth\/.+$) {
  set $panAuthCheck 'off';
}

if ($uri = /php/logout.php) {
  set $panAuthCheck 'off';
}

# new login rules
# 匹配登录的静态文件 images js
location ~ ^/login/(images|js)/ {
  # 重写: /login/(images|js)/(.*)$ => /$1/login/$2
  # $1 (images|js), $2 (.*)
  rewrite /login/(images|js)/(.*)$ /$1/login/$2 break;
  # 静态资源根目录
  root /var/appweb/htdocs;
  # It is directly retrieving static files, we can not do proxy_hide_header, instead should just use add_header
  add_header Last-Modified "";
  add_header Cache-Control "max-age=86400";
}

location ~ ^/login/(css|fonts)/ {
  root /var/appweb/htdocs/styles/;
  # It is directly retrieving static files, we can not do proxy_hide_header, instead should just use add_header
  add_header Last-Modified "";
  add_header Cache-Control "max-age=86400";
}

location /php/login.php {
  client_max_body_size 1k;
  limit_req zone=unauthRateLimit burst=10;
  # 登录的时候也是关闭认证
  set $panAuthCheck 'off';

  proxy_set_header X-Client-Cert $ssl_client_escaped_cert;
  # 包含默认的配置（ 请求头的配置 ）
  include conf/proxy_default.conf;
  proxy_pass_header Authorization;
  proxy_pass http://$gohost$gohostExt;
  # Remove Last-modified from proxy header
  proxy_hide_header Last-Modified;
}

# SAML related
location /SAML20/SP/ACS {
  set $panAuthCheck 'off';
  proxy_intercept_errors on;
  rewrite /SAML20/SP/ACS /unauth/php/DualLogin.php break;
  proxy_set_header X-ORIG-URI /SAML20/SP/ACS;
  include conf/proxy_default.conf;
  proxy_pass http://$gohost$gohostExt;
}


# not allow json, lock, conf file access
location ~ ^/(vendor|python)([^\/]*)/(.*).(json|lock|conf)$ {
  return 404;
}

# redirect `/upload/xxx` to panPhpModule
# upload 交给 @upload_regular 处理
location /upload/ {
  error_page 402 =200 @upload_regular;
  return 402;
}

# block unauthorized `/upload` access
# this prevents hacker dumping files to the system to fill up disk space.
# 不允许 upload 的访问
location /upload {
  return 403;
}

# plugins not going through proxy and backend
location ~ ^/plugins/([^\/]*)/ui/(js|styles|generated|VMSeries_Help|help)/ {
  rewrite /plugins/([^\/]*)/ui/(js|styles|generated|VMSeries_Help|help)/(.*)$
  /installed/$1/ui/$2/$3
  break;
  # It is directly retrieving static files, we can not do proxy_hide_header, instead should just use add_header
  add_header Last-Modified "";
  add_header Cache-Control "max-age=86400";
  root /opt/plugins;
}

location /webui/ {
  proxy_http_version 1.1;
  # ^/webui(\/.*)$ =》 /php-packages/firewall_webui/php/api/index.php$1
  # /webui/abc => /php-packages/firewall_webui/php/api/index.php/abc
  rewrite ^/webui(\/.*)$ /php-packages/firewall_webui/php/api/index.php$1 break;

  # look for upload
  # if ($content_type ~* "multipart/form-data") {
  #   error_page 402 =200 @upload_api;
  # }

  include conf/proxy_default.conf;
  proxy_pass_header Authorization;
  proxy_pass_header token;
  proxy_pass_header tid;
  proxy_pass http://$gohost$gohostExt;
}

# index.php 同样是关闭认证
location /api/index.php {
  proxy_http_version 1.1;
  proxy_set_header Connection "Close";
  set $panAuthCheck 'off';
  # $args 是原始请求
  # 这里会匹配有 password=的把其中的密码进行替换做加密处理, 这样就不会在日志中泄露了
  set $obfuscated_args $args;
  if ($obfuscated_args ~ (?i)(.*)(?=password=)password=[^&]*(.*)) {
    set $obfuscated_args $1password=****$2;
  }
  if ($obfuscated_args ~ (?i)(.*)(?=key=)key=[^&]*(.*)) {
    set $obfuscated_args $1key=****$2;
  }
  if ($obfuscated_args ~ (?i)(.*)(?=REST_API_TOKEN=)REST_API_TOKEN=[^&]*(.*)) {
    set $obfuscated_args $1REST_API_TOKEN=****$2;
  }
  # 原始请求的处理
  set $obfuscated_request $request;
  if ($obfuscated_request ~ (?i)(.*)(?=password=)password=[^&]*(.*)) {
    set $obfuscated_request $1password=****$2;
  }
  if ($obfuscated_request ~ (?i)(.*)(?=key=)key=[^&]*(.*)) {
    set $obfuscated_request $1key=****$2;
  }
  if ($obfuscated_request ~ (?i)(.*)(?=REST_API_TOKEN=)REST_API_TOKEN=[^&]*(.*)) {
    set $obfuscated_request $1REST_API_TOKEN=****$2;
  }

  # rewrite below will add `index.php` to $uri.
  # capture the original uri before that happens,
  # for api_metric logging.
  set $orig_uri $uri;

  access_log /var/log/nginx/access.log stripped;
  access_log /var/log/nginx/api_metrics.log stripped_metric;

  # look for upload
  if ($content_type ~* "multipart/form-data") {
    error_page 402 =200 @upload_api;
    return 402;
  }

  if ($devonly = 1) {
    set $gohostExt $server_port;
  }

  include conf/proxy_default.conf;
  proxy_pass http://$gohost$gohostExt;
  # Remove Last-modified from proxy header
  proxy_hide_header Last-Modified;
}


location /api {
  # do not know why "last" is needed and "break" does not work for api browser
  rewrite ^(/api)(\/?)$ $1/index.php last;
  rewrite ^(/api)(\/.*)$ $1/index.php$2 last;
}

location /restapi/ {
  proxy_http_version 1.1;
  proxy_set_header Connection "Close";
  set $panAuthCheck 'off';

  set $obfuscated_args $args;
  if ($obfuscated_args ~ (?i)(.*)(?=password=)password=[^&]*(.*)) {
    set $obfuscated_args $1password=****$2;
  }
  if ($obfuscated_args ~ (?i)(.*)(?=key=)key=[^&]*(.*)) {
    set $obfuscated_args $1key=****$2;
  }

  set $obfuscated_request $request;
  if ($obfuscated_request ~ (?i)(.*)(?=password=)password=[^&]*(.*)) {
    set $obfuscated_request $1password=****$2;
  }
  if ($obfuscated_request ~ (?i)(.*)(?=key=)key=[^&]*(.*)) {
    set $obfuscated_request $1key=****$2;
  }

  # rewrite below will add `index.php` to $uri.
  # capture the original uri before that happens,
  # for api_metric logging.
  set $orig_uri $uri;

  rewrite ^/restapi(\/.*)$ /php/restapi/index.php$1 break;

  access_log /var/log/nginx/access.log obfus_access;
  access_log /var/log/nginx/restapi_metrics.log api_metric;

  # `wget` POST does not work.
  # If not regression, this will be removed
  # if ($arg_client = 'wget') {
  #   error_page 402 =200 @api_wget_file; return 402;
  #   set $isWgetLoad "w";
  # }
  # if ($arg_file-name) {
  #   set $isWgetLoad "${isWgetLoad}f";
  # }

  # look for upload
  if ($content_type ~* "multipart/form-data") {
    error_page 402 =200 @upload_api;
    return 402;
  }

  include conf/proxy_default.conf;
  proxy_pass http://$gohost$gohostExt;
  # Remove Last-modified from proxy header
  proxy_hide_header Last-Modified;
}

# route `/restapi-doc` to `/restapi-doc/` as `DirectorySlash off` in httpd
location = /restapi-doc {
  if ($args) {
    return 302 /restapi-doc/?$args;
  }
  return 302 /restapi-doc/;
}

# It is added to prevent restapi-doc page using default config
location /restapi-doc/ {
  include conf/proxy_default.conf;
  proxy_pass http://$gohost$gohostExt;
}

# location @api_wget_file {
#     client_body_in_file_only on;
#     proxy_set_header X-API-WGET-FILTER-FILE-PATH $request_body_file;
# }

location @upload_api {
  upload_pass @back_upload_api;
  include conf/upload_default.conf;
}

location @back_upload_api {
  include conf/proxy_default.conf;
  proxy_pass http://$gohost$gohostExt;
  # Remove Last-modified from proxy header
  proxy_hide_header Last-Modified;
}

location @upload_regular {
  upload_pass @back_upload_regular;
  include conf/upload_default.conf;
}

location @back_upload_regular {
  proxy_intercept_errors on;
  include conf/proxy_default.conf;
  proxy_pass http://$gohost$gohostExt;
  # Remove Last-modified from proxy header
  proxy_hide_header Last-Modified;
}

# Custom error response pages
error_page 400 /error_page/400.html;
error_page 495 /error_page/400.html;
error_page 496 /error_page/400.html;
error_page 497 /error_page/400.html;
error_page 403 /error_page/403.html;
error_page 404 /error_page/404.html;
error_page 500 /error_page/500.html;
error_page 501 /error_page/501.html;
error_page 502 /error_page/502.html;
error_page 503 /error_page/503.html;
error_page 504 /error_page/504.html;

location /error_page/ {
  root /var/appweb/htdocs;
  # It is directly retrieving static files, we can not do proxy_hide_header, instead should just use add_header
  add_header Last-Modified "";
  add_header Cache-Control "max-age=86400";
  add_header Strict-Transport-Security "max-age=31536000; includeSubDomains" always;
  internal; # 只有通过内部重定向（如 rewrite 或 error_page）才能访问这个路径，而不能直接从外部（客户端）访问。
}

# not allow internal page access
location /phpincludes {
  return 404;
}
location /php/include {
  return 404;
}
location /lib/worldmap {
  return 404;
}

# default catch all
set $addXframe 0;

# route `/debug` to `/debug/` as `DirectorySlash off` in httpd
location = /debug {
  return 302 /debug/;
}

location / {
  # intercept errors is turned on only for GUI pages,
  # so that they are directed to the proper error pages.
  proxy_intercept_errors on;
  if ($devonly = 1) {
    set $gohostExt $server_port;
  }
  if ($uri = /) {
    add_header X-Frame-Options "DENY";
    add_header X-XSS-Protection '1; mode=block;';
    add_header X-Content-Type-Options 'nosniff';
    add_header Strict-Transport-Security 'max-age=31536000';
  }
  include conf/proxy_default.conf;
  proxy_pass_header Authorization;
  proxy_pass http://$gohost$gohostExt;
  # Remove Last-modified from proxy header
  proxy_hide_header Last-Modified;
  proxy_cookie_path / "/; HttpOnly; SameSite=Strict";
}

# sample: /wf_report/public|private/...whatever goes to Wildfire
# /wf_report/private/wildfire.paloaltonetworks.com/443/xxx/api/1.0/box/VERSION HTTP/1.0
#
location ~ ^/wf_report/([^\/]*)/([^\/]*)/([^\/]*)/(xxx/)?(.*)$ {
  proxy_intercept_errors on;
  default_type text/plain;
  if ($request_method = OPTIONS) {
    add_header Content-Length 0;
    add_header Access-Control-Allow-Origin "null";
    add_header Access-Control-Allow-Methods "POST,GET,OPTIONS";
    add_header Access-Control-Allow-Headers "x-requested-with";
    add_header Access-Control-Allow-Credentials "true";
    add_header Access-Control-Max-Age 30;
    add_header Strict-Transport-Security 'max-age=31536000';
    return 200;
  }
  set $wftype "$1";
  set $myproxy "$2";
  set $myport "$3";
  set $myuri "$5";

  rewrite "^/wf_report/(.*)$" /php/monitor/wfAuthorize.php/$myuri break;

  # -------------------------
  proxy_set_header X-Wf-Server $myproxy;
  proxy_set_header X-Wf-Server-Port $myport;
  proxy_set_header X-Wf-Server-Type $wftype;
  # -------------------------
  include conf/proxy_default.conf;
  proxy_pass http://$gohost$gohostExt;

  add_header Access-Control-Allow-Origin "null";
  add_header Access-Control-Allow-Methods "POST,GET";
  add_header Access-Control-Allow-Headers "x-requested-with";
  add_header Access-Control-Allow-Credentials "true";
  add_header Access-Control-Max-Age 30;
  add_header Strict-Transport-Security 'max-age=31536000';
  # Remove Last-modified from proxy header
  proxy_hide_header Last-Modified;
}

location ~ ^/php/monitor/(wfAuthorize|wfProxy).php {
  internal;
}

nginx 默认过滤请求头，所以是需要显式的设置，其他的也就会默认的传输：

conf/proxy_default.conf

# default proxy request header setting
# 设置了一些请求头, 不过必须包含才会起作用, 所以可以看到匹配的规则中设置 $panAuthCheck 了都要包含一下
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Real-Scheme $scheme;
proxy_set_header X-Real-Port $server_port;
proxy_set_header X-Real-Server-IP $server_addr;
proxy_set_header X-Forwarded-For  $proxy_add_x_forwarded_for;
proxy_set_header X-pan-ndpp-mode $pan_ndpp_mode;
proxy_set_header Proxy "";
proxy_set_header X-pan-AuthCheck $panAuthCheck;

nginx 解析规则：

学习到了 nginx 的很多知识

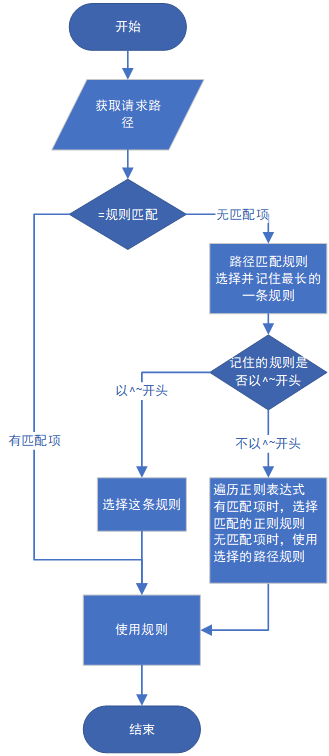

而且从上图中也知道了，nginx 中配置的规则就是匹配到了就走这条后面的就不处理了。

整理一下匹配的规则（按顺序）：

/nginx_status：127.0.0.1
~ \.js\.map$ ：整体上是为了处理缓存，不过在 set $panAuthCheck 'on'; 之前就导致了X-pan-AuthCheck可以被自定义
set $panAuthCheck 'on'; 配置默认启用认证检测
^\/unauth\/.+$ 无需认证
/php/logout.php 无需认证
^/login/(images|js)/  login 的静态资源访问，重写规则
^/login/(css|fonts)/ 静态资源 /var/appweb/htdocs/styles/
/php/login.php $panAuthCheck 'off' => conf/proxy_default.conf => 转到上游服务
/SAML20/SP/ACS off /unauth/php/DualLogin.php X-ORIG-URI /SAML20/SP/ACS
/SAML20/SP/SLO
/SAML20/SP/TEST
^/(vendor|python)([^\/]*)/(.*).(json|lock|conf)$ => 404 不允许访问
/upload/ => @upload_regular
/upload => 403
/plugins/([^\/]*)/ui/(js|styles|generated|VMSeries_Help|help)/(.*)$ => /installed/$1/ui/$2/$3 => /opt/plugins
/webui/ => ^/webui(\/.*)$ /php-packages/firewall_webui/php/api/index.php$1
/api/index.php => $args,$request 中敏感信息替换为 *， multipart/form-data => @upload_api
/api => /api/xfdfs => /apifsdfs 的情况重写 $1/index.php$2
/restapi/ => /api/index.php 类似
/restapi-doc => /restapi-doc/
/restapi-doc/ => include conf/proxy_default.conf 认证生效
@upload_api =》 @back_upload_api incinternallude conf/proxy_default.conf 认证生效
/error_page/ =》 xxx

漏洞分析

php.ini 和 index.php 都表明了先加载 envSetup.php：

只有 4 个条件都满足后才会进行认证验证：

$_SERVER['HTTP_X_PAN_AUTHCHECK'] != 'off'
$_SERVER['PHP_SELF'] !== '/CA/ocsp'
$_SERVER['PHP_SELF'] !== '/php/login.php'
stristr($_SERVER['REMOTE_HOST'], '127.0.0.1') === false

if (
    $_SERVER['HTTP_X_PAN_AUTHCHECK'] != 'off'
    && $_SERVER['PHP_SELF'] !== '/CA/ocsp'
    &&  $_SERVER['PHP_SELF'] !== '/php/login.php'
    && stristr($_SERVER['REMOTE_HOST'], '127.0.0.1') === false
) {
    $_SERVER['PAN_SESSION_READONLY'] = true;
    $ws = WebSession::getInstance($ioc);
    $ws->start();
    $ws->close();
    // these are horrible hacks.
    // This whole code should be removed and only make available to a few pages: main, debug, etc.
    if (
        !Str::startsWith($_SERVER['PHP_SELF'], '/php-packages/panorama_webui/php/api/index.php')
        && !Str::startsWith($_SERVER['PHP_SELF'], '/php-packages/firewall_webui/php/api/index.php')
    ) {
        if (Backend::quickSessionExpiredCheck()) {
            if (isset($_SERVER['QUERY_STRING'])) {
                Util::login($_SERVER['QUERY_STRING']);
            } else {
                Util::login();
            }
            exit(1);
        }
    }
}

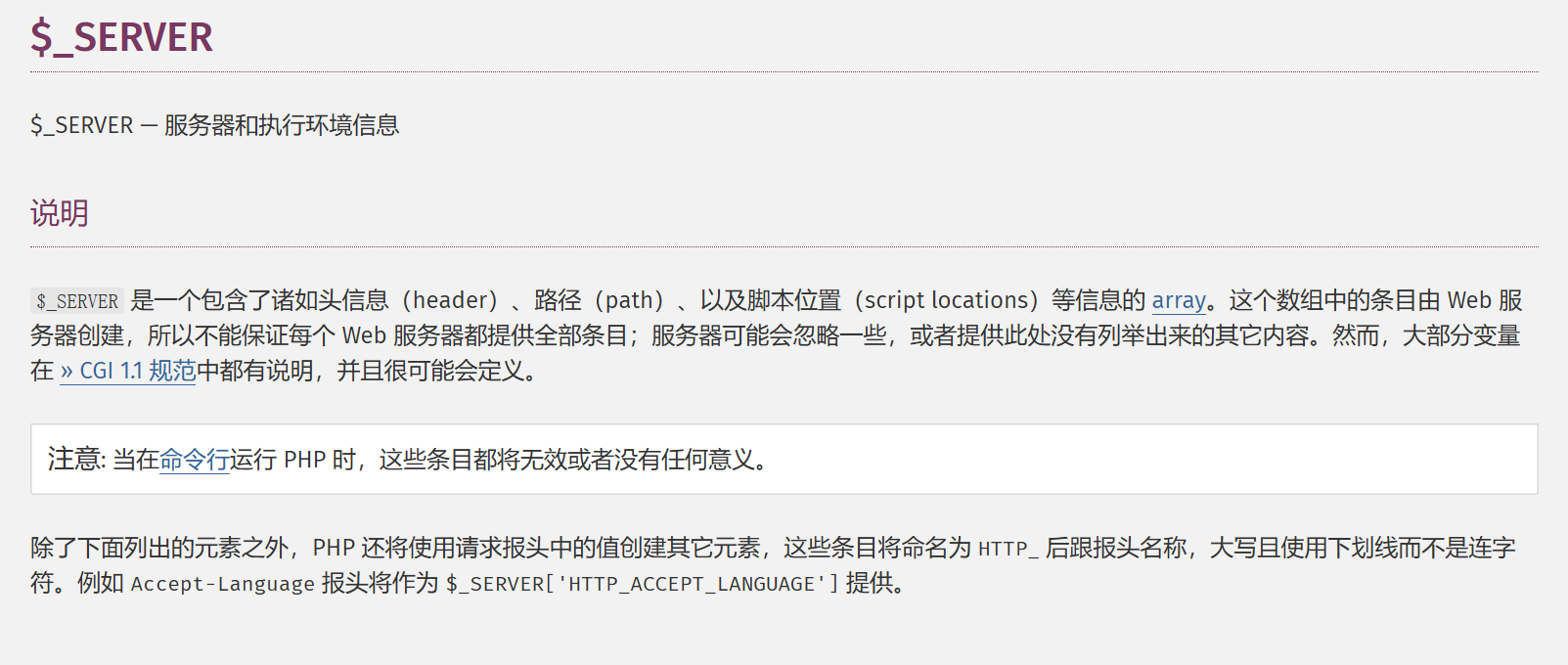

HTTP_X_PAN_AUTHCHECK => Req Header X-PAN-AUTHCHECK

这里请求的是 Apache 的 WEB 服务：

1 2	`curl http://127.0.0.1:28250/php/ztp_gate.php -v curl http://127.0.0.1:28250/php/ztp_gate.php -v -H "X-PAN-AUTHCHECK: off"`

可以看到 X-PAN-AUTHCHECK 是可以有效绕过的。

但是放在 80,443 这些 nginx 的服务端口就不行了。

这个原因其实在从上面的 nginx 配置分析就可以看出来。除过几个特定的路径设置了 $panAuthCheck 'off' 也就是 proxy_default.conf 中的 X-pan-AuthCheck $panAuthCheck 其他的路由在刚开始就被默认配置为 on 了：

^\/unauth\/.+$
/php/logout.php
/php/login.php
/SAML20/SP/ACS
xxxx

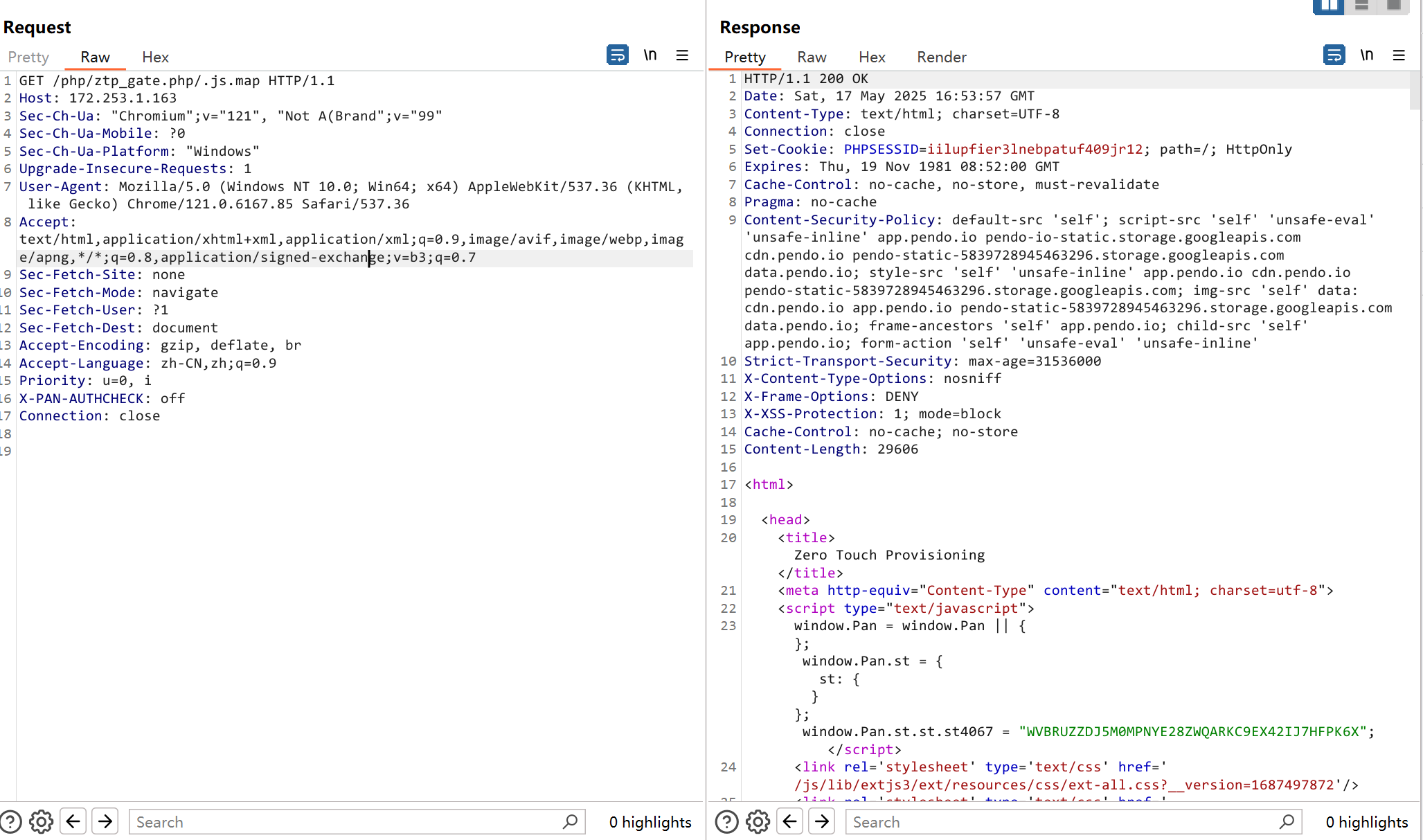

不过很明显的是存在漏网之鱼的：

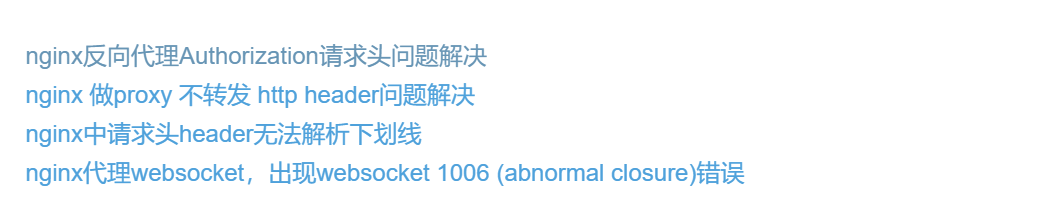

而自定义的 X-PAN-AUTHCHECK 并不在 nginx 默认的过滤范围之内（ Authorization、下划线...）那么也就是说，客户端自定义的请求头是可以被传递到 apache 的，也就是造成了身份认证绕过。（下面那个 /unauth 路由的也是，还有个认证绕过的漏洞，这里不讲）

然后还有一个问题，为什么访问 /php/ztp_gate.php/.js.map 会解析 /php/ztp_gate.php 呢？

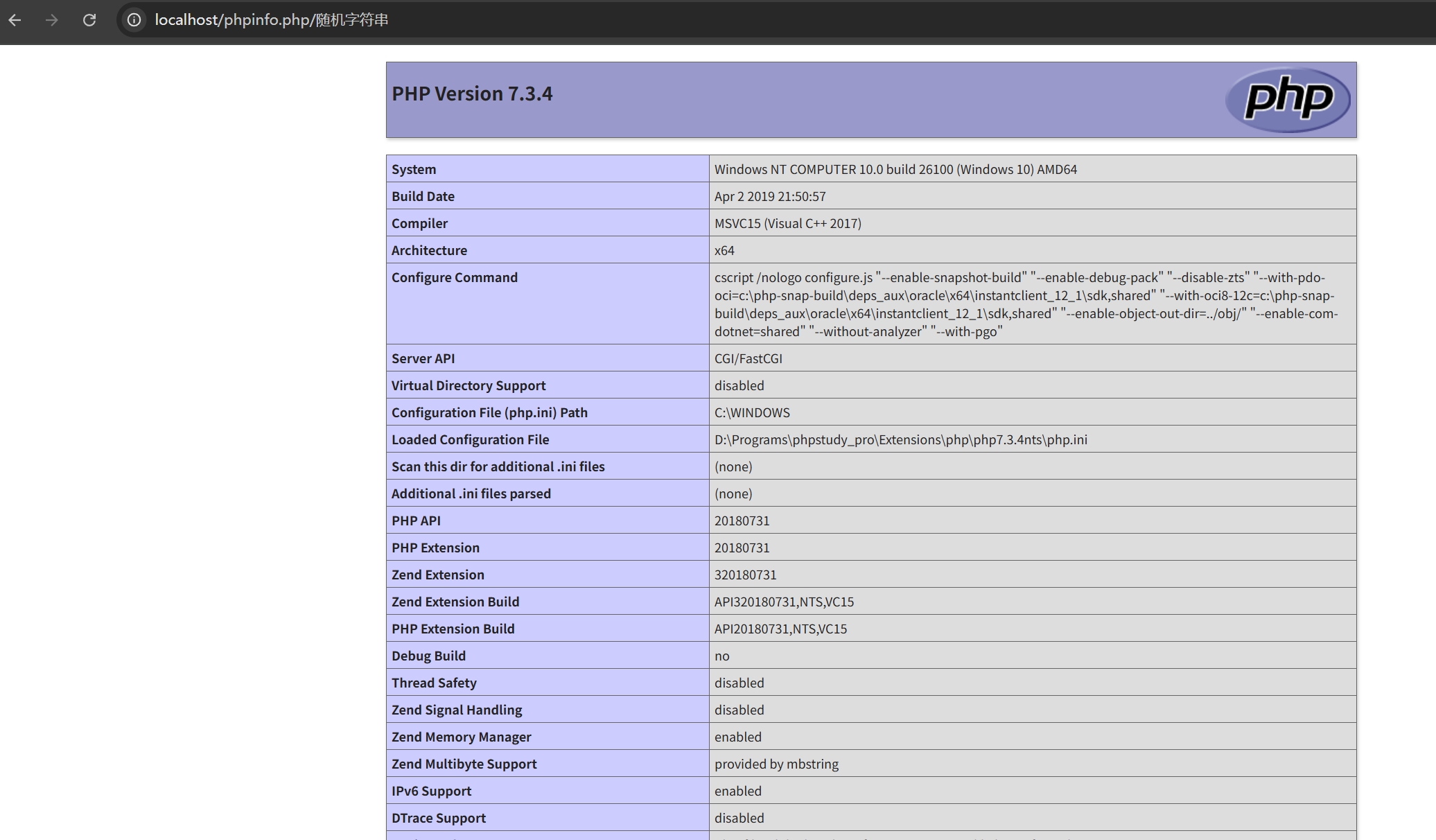

没有找到什么关于的配置，本地测试 apache，nginx 都是可以这样解析的 .php/随机字符串

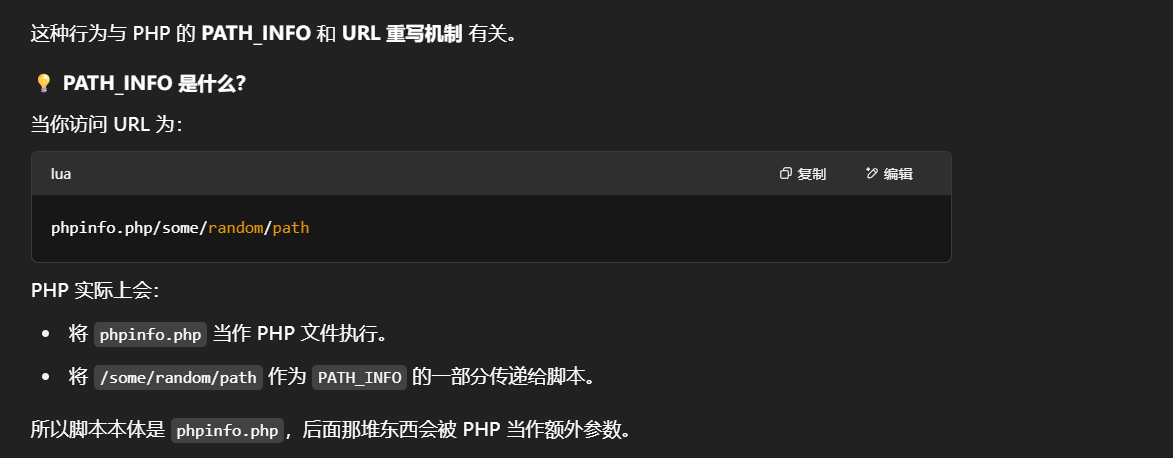

学到了：

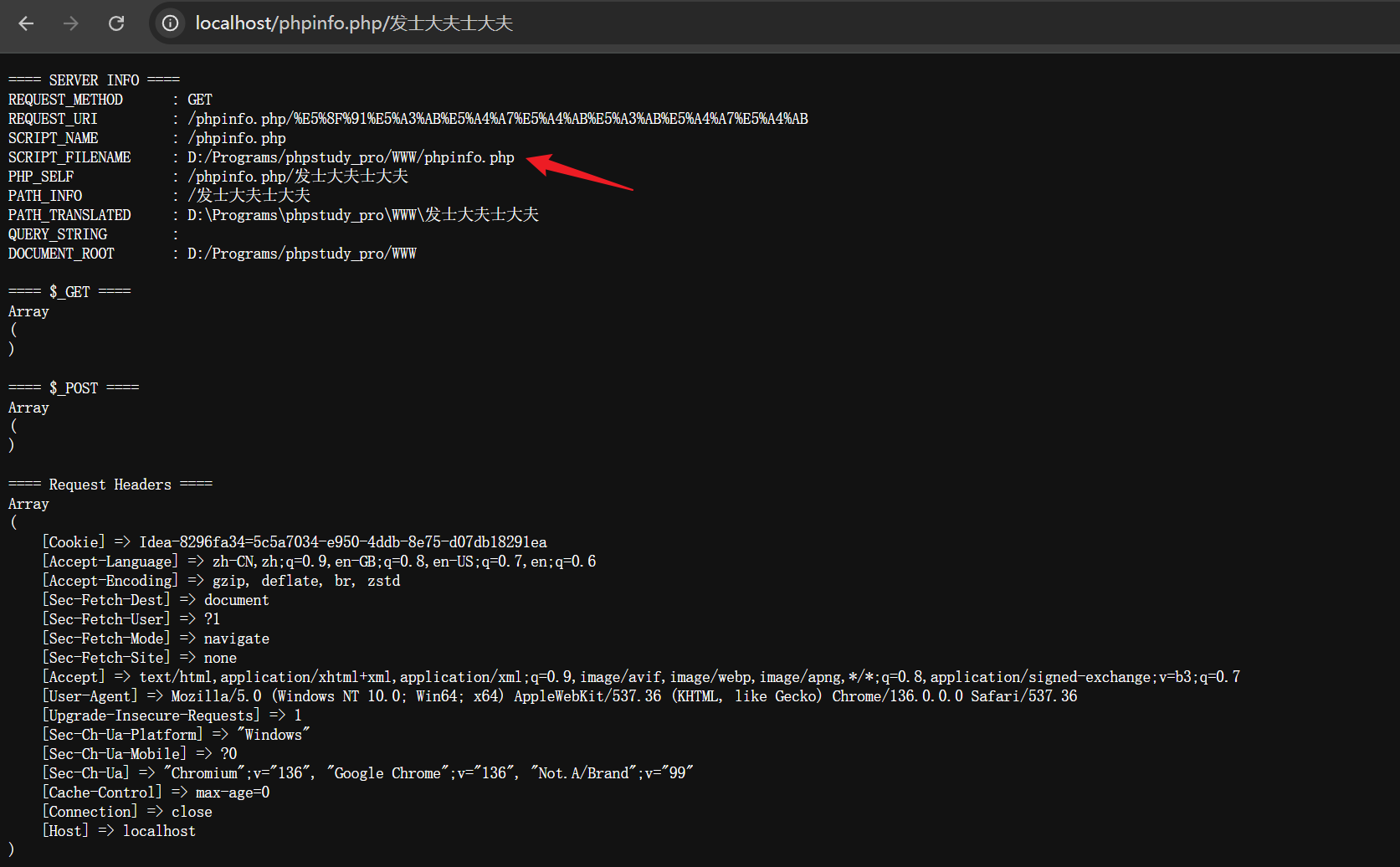

可以看到解析是始终是 php 文件

这也解释了为什么会有这种构造了：

1	`^/webui(\/.*)$ /php-packages/firewall_webui/php/api/index.php$1`

参考链接

https://labs.watchtowr.com/pots-and-pans-aka-an-sslvpn-palo-alto-pan-os-cve-2024-0012-and-cve-2024-9474/
https://www.cnblogs.com/xiongzaiqiren/p/16968651.html
