MCP Tool

MCP 介绍

MCP 是一个开放协议,它为应用程序向 LLM 提供上下文的方式进行了标准化。你可以将 MCP 想象成 AI 应用程序的 USB-C 接口。就像 USB-C 为设备连接各种外设和配件提供了标准化的方式一样,MCP 为 AI 模型连接各种数据源和工具提供了标准化的接口。

个人理解就是我们可以通过 MCP 给 AI 添加具备各种功能的 “手臂”,这样 AI 就可以做更多的事情。

之前使用 AI 可以告诉我们做某件事情的”方法\教程”,然后我们人去执行,通过 MCP 我们可以直接让 AI 去直接操作。

MCP 核心采用客户端-服务器架构:

  • MCP Clients: 维护与服务器一对一连接的协议客户端
  • MCP Servers: 轻量级程序,通过标准的 Model Context Protocol 提供特定能力

类型:

  • Resources:允许服务器暴露可以被 clients 读取并用作 LLM 交互上下文的数据和内容
  • Tools:使 servers 能够向 clients 暴露可执行功能。通过 tools,LLMs 可以与外部系统交互、执行计算并在现实世界中采取行动。

本文主要介绍 Tools 的开发使用。

MCP Servers

这里通过 Python 来编写服务端,通过 uv 进行包管理。

1
2
3
4
5
6
7
8
9
10
11
# uv install
curl -LsSf https://astral.sh/uv/install.sh | sh
powershell -ExecutionPolicy ByPass -c "irm https://astral.sh/uv/install.ps1 | iex"

uv init project_name
cd project_name

uv venv
.venv\Scripts\activate

uv add mcp[cli]

这里编写一个 okx 的 mcp 服务端,功能:

  1. 获取实时的指定时间级别的虚拟货币的 k 线数据
  2. 获取当前交易账户数据

编写的话其实很简单,添加 @mcp.tool 注解,然后函数的名称就是工具的名称,函数的参数和注释介绍同样就是工具的,AI 就可以获取到这些信息,实现调用。

代码如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
from typing import Any, List

import okx.MarketData as MarketData
import okx.PublicData as PublicData
import okx.Account as Account
import okx.Trade as Trade
import pandas as pd
from mcp.server.fastmcp import FastMCP

mcp = FastMCP("okx")

flag = "0" # 实盘:0 , 模拟盘:1
apikey = ""
secretkey = ""
passphrase = ""

marketDataAPI = MarketData.MarketAPI(flag=flag)
publicDataAPI = PublicData.PublicAPI(flag=flag)
accountAPI = Account.AccountAPI(apikey, secretkey, passphrase, False, flag)
tradeAPI = Trade.TradeAPI(apikey, secretkey, passphrase, False, flag)

@mcp.tool()
async def get_account_balance() -> Any:
"""
获取交易账户中资金余额信息
:return:
"""
return accountAPI.get_account_balance()["data"]


@mcp.tool()
async def get_candlesticks(instId: str, bar: str, limit: int = 500) -> list:
"""
获取指定产品的 k 线数据
:param instId: 产品 id
:param bar: 时间粒度,[1m/3m/5m/15m/30m/1H/2H/4H]
:param limit: 获取的 k 线数量,默认 500
:return: k 线数据列表
"""
candlesticks = []
min_ts = 0
while len(candlesticks) < limit:
if min_ts == 0:
result = marketDataAPI.get_candlesticks(instId=instId, bar=bar)
else:
result = marketDataAPI.get_candlesticks(instId=instId, bar=bar, after=min_ts)
for item in result.get("data", []):
ts = item[0]
if min_ts == 0 or ts < min_ts:
min_ts = ts
utc_time = pd.to_datetime(int(item[0]), unit='ms')
china_time = utc_time.tz_localize('UTC').tz_convert('Asia/Shanghai')
formatted = {
'datetime': str(china_time),
'ts': int(item[0]),
'open': float(item[1]),
'high': float(item[2]),
'low': float(item[3]),
'close': float(item[4]),
'volume': float(item[5]),
'volume_ccy': float(item[6]),
'volume_quote': float(item[7]),
'is_closed': bool(int(item[8]))
}
candlesticks.append(formatted)
return candlesticks

@mcp.tool()
async def get_instrument_instIds() -> List[str]:
"""
获取 okx 所有可交易产品的 instId
:return: instId 列表
"""
instIds = []
result = publicDataAPI.get_instruments(
instType="SPOT"
)
for item in result.get("data", []):
instIds.append(item["instId"])
return instIds

if __name__ == "__main__":
mcp.run(transport='stdio')

MCP Clients

应用程序

有很多程序已经支持了去添加 MCP 工具,这里使用 Cursor:

image-20250615113854006

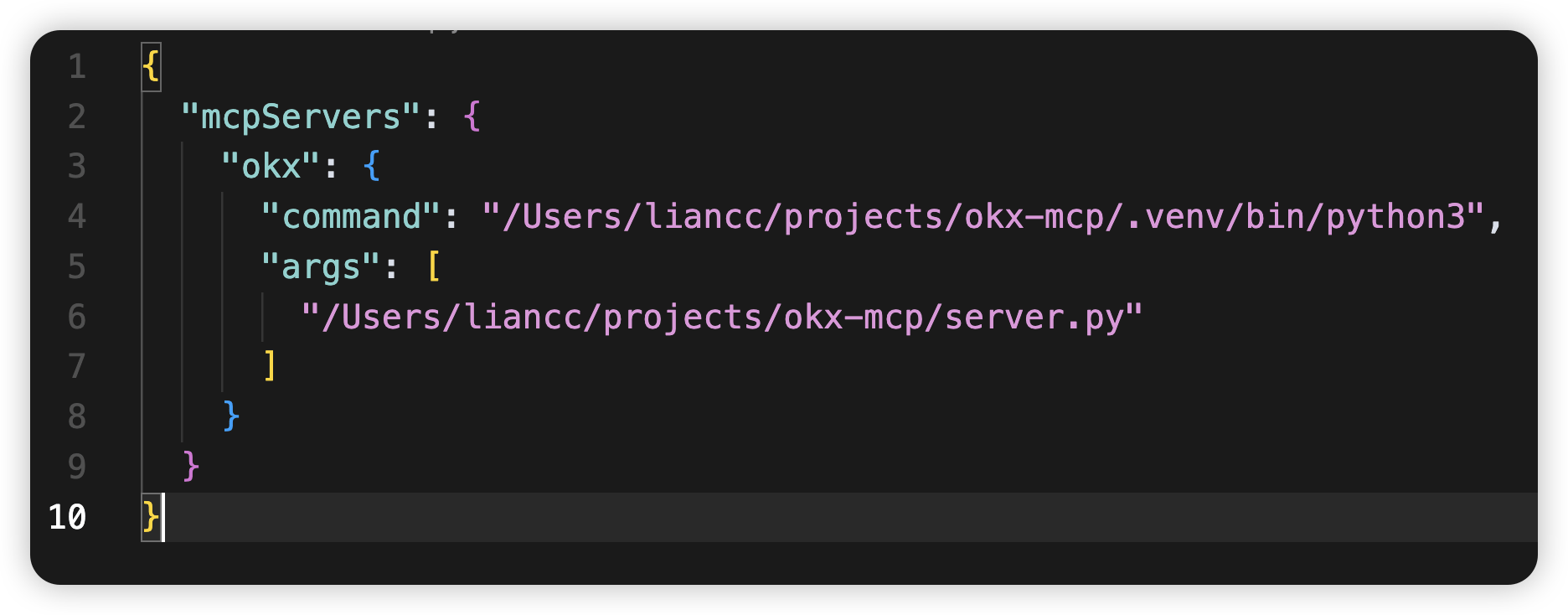

这里就是运行工具的命令:

image-20250615113934288

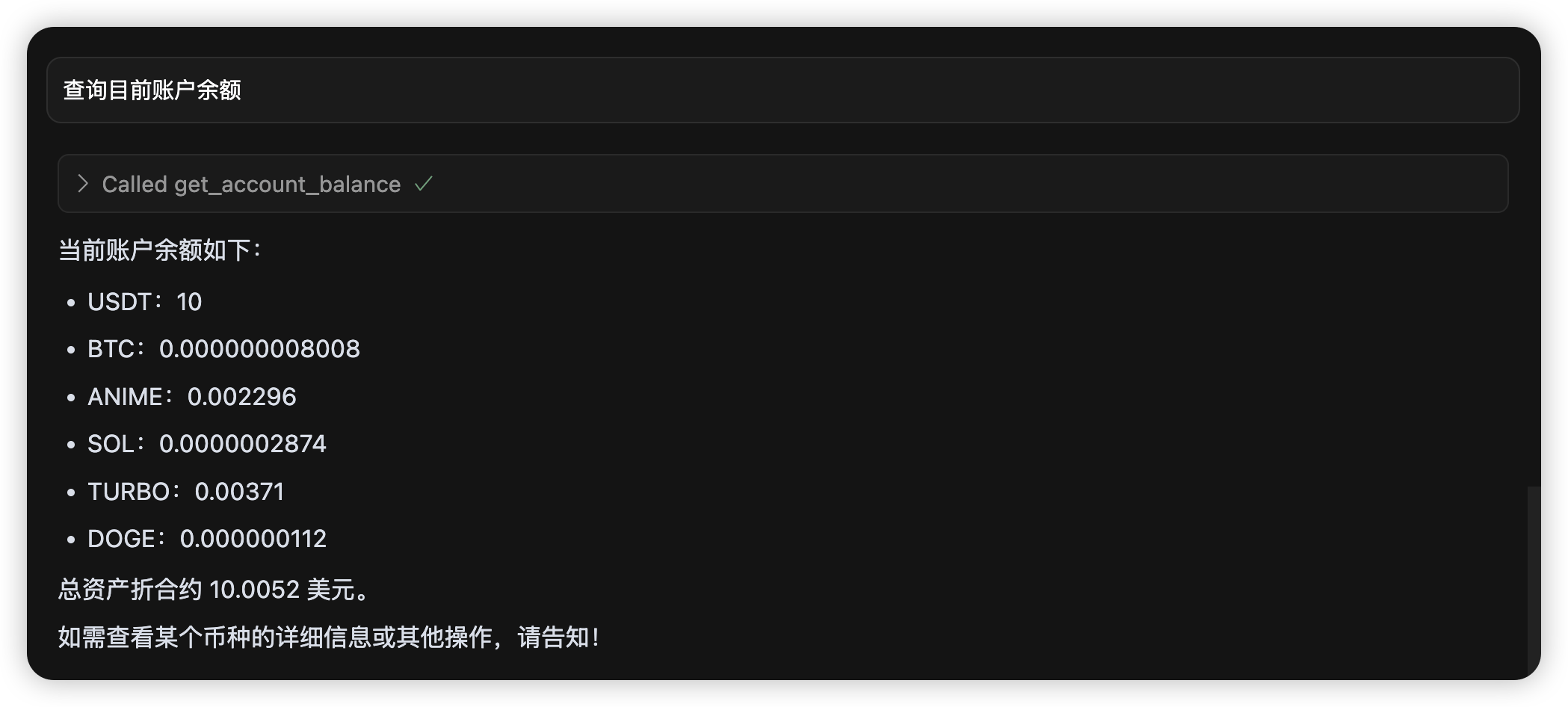

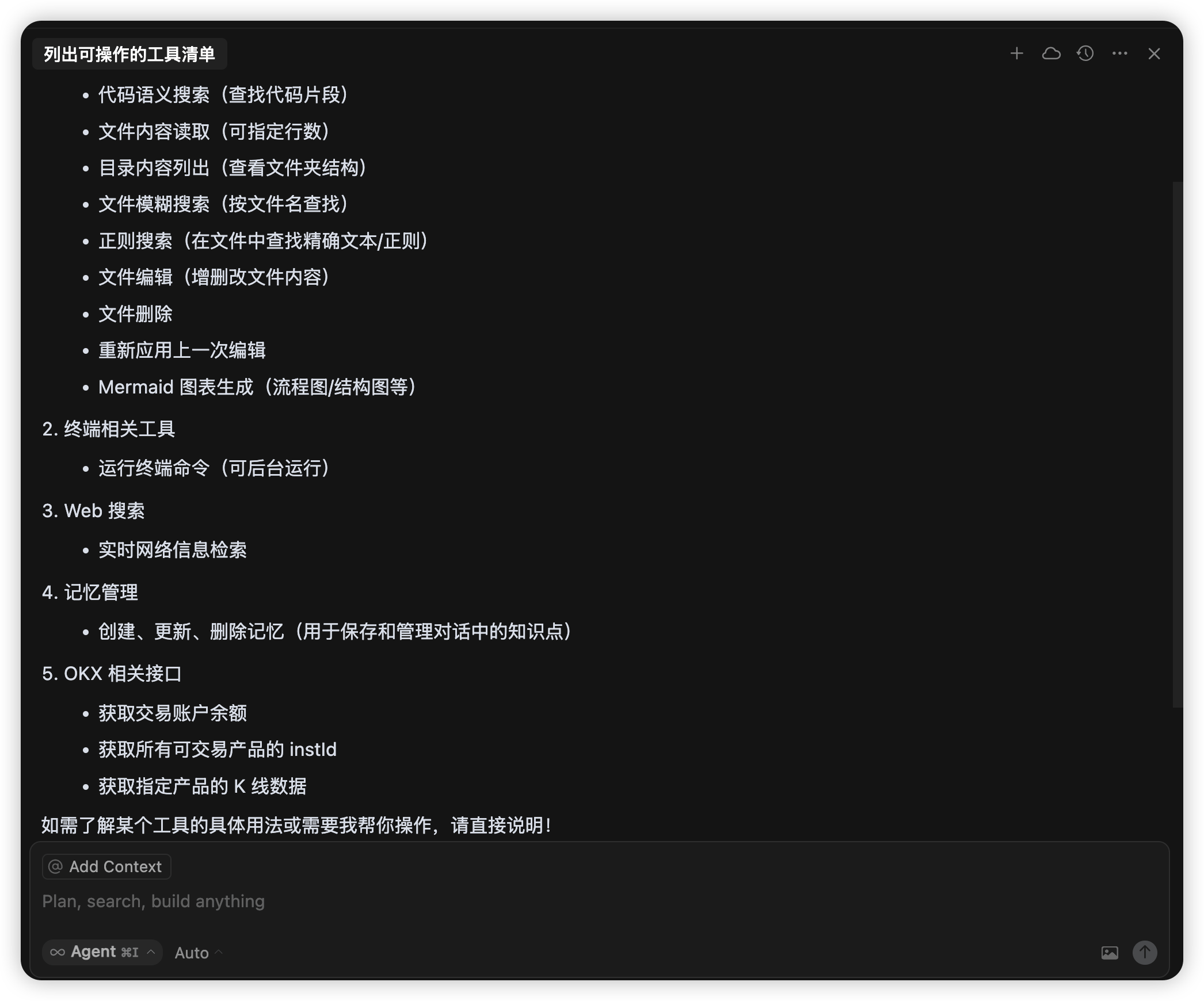

然后通过 Agent 模式问答:

image-20250615114200660

image-20250615114232739

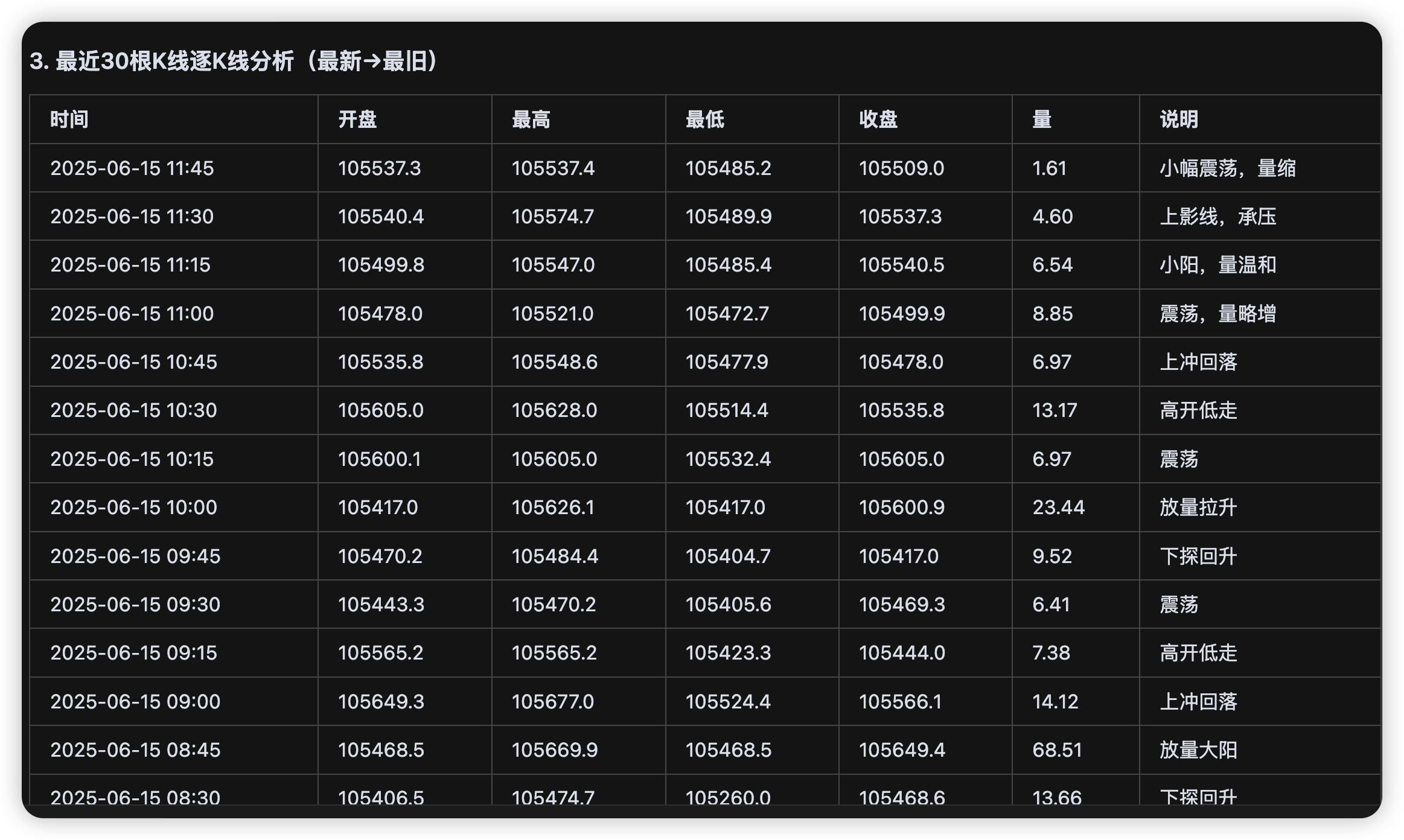

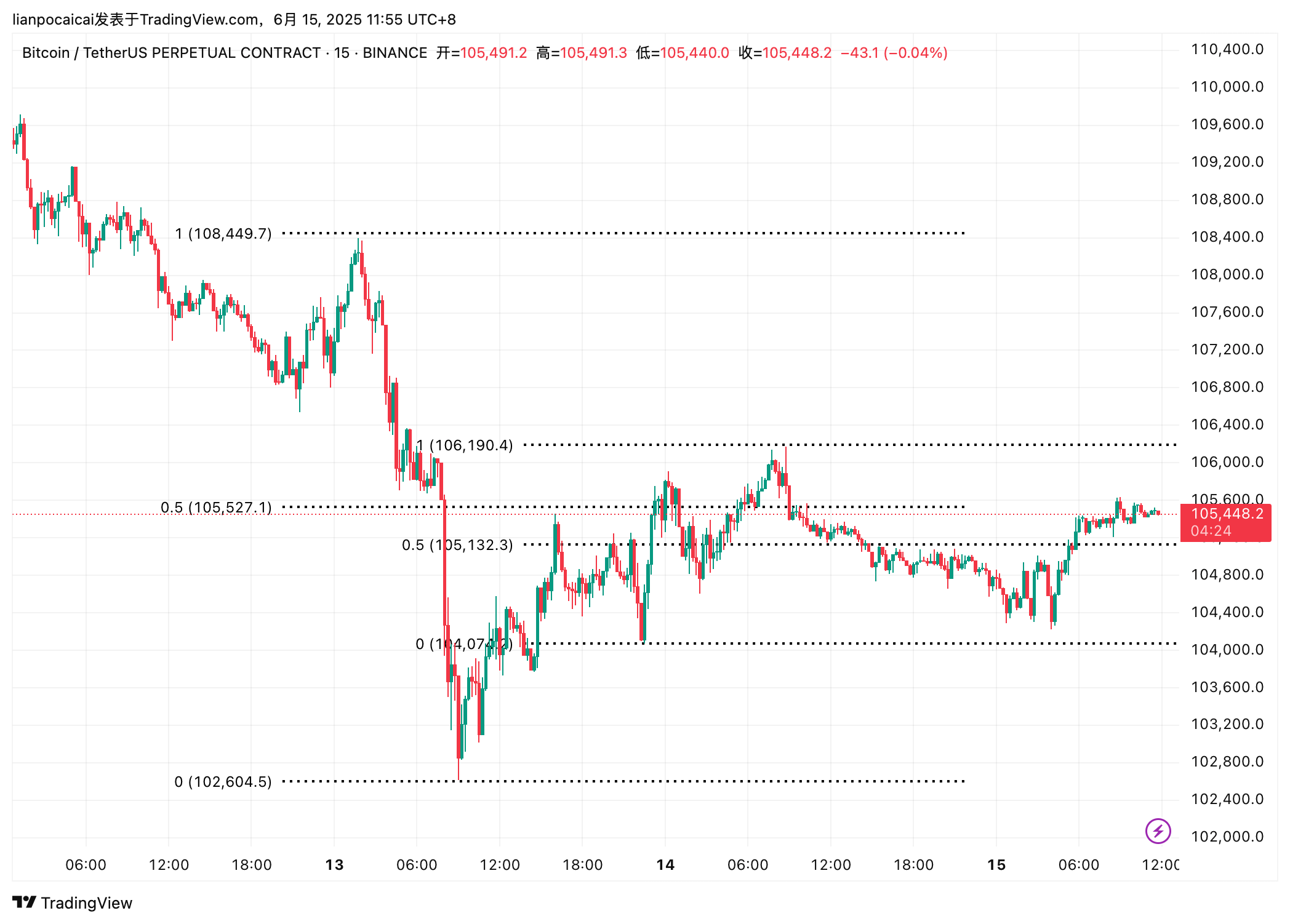

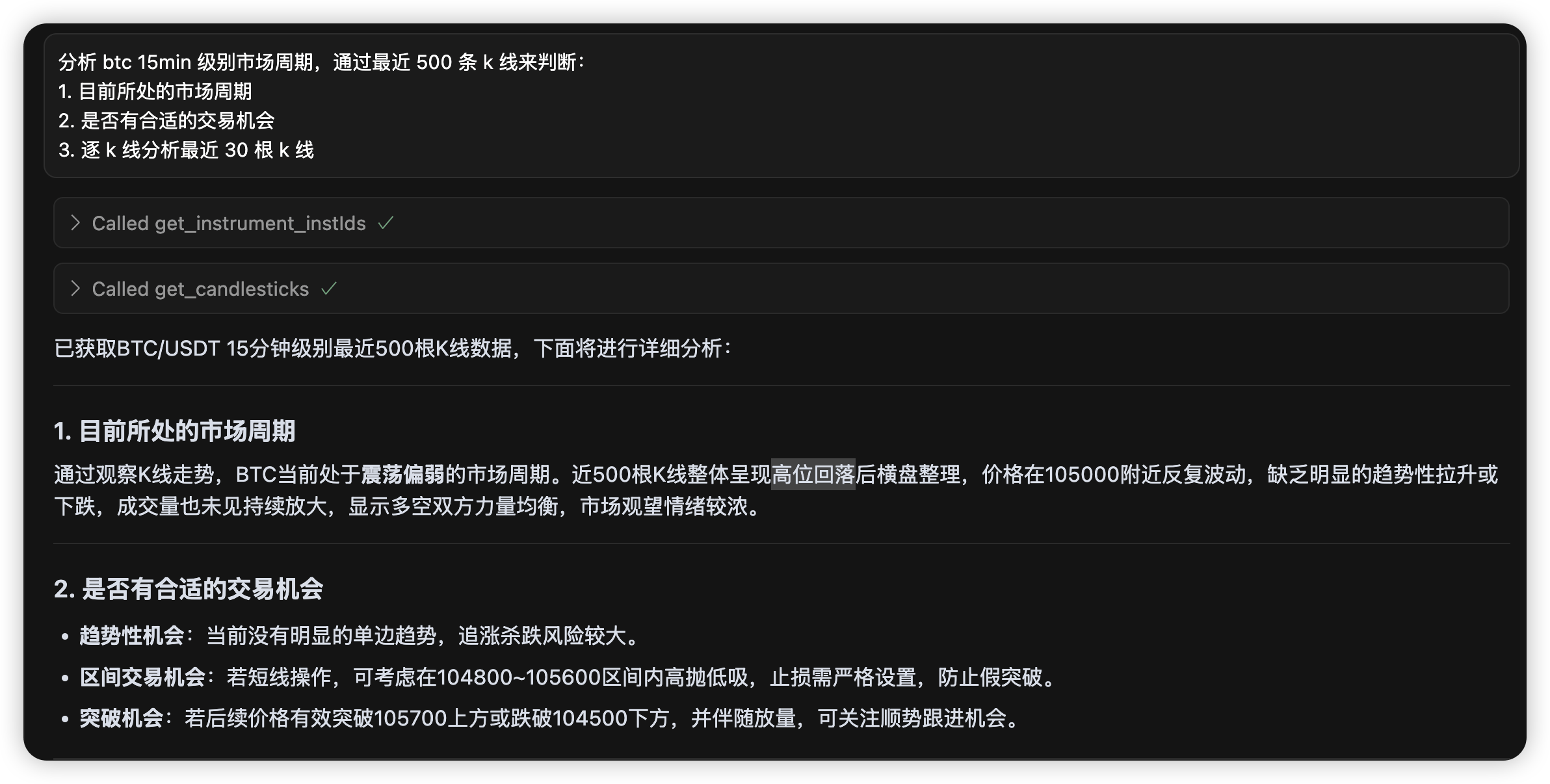

大致趋势判断的没啥问题,但是和人分析比不了,后面可以测试下规定一些交易分析的方法策略再测试,目前只是直接分析:

image-20250615115625012

image-20250615115800094

image-20250615115551633

Python

通过 Python 来编写客户端:

  1. 用户询问,AI 决定使用的工具
  2. 把工具结果给 AI ,返回最终结果
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
import asyncio
import os
from typing import Optional
from contextlib import AsyncExitStack

from mcp import ClientSession, StdioServerParameters
from mcp.client.stdio import stdio_client

from anthropic import Anthropic
from dotenv import load_dotenv
from openai import OpenAI


class MCPClient:
def __init__(self):
# Initialize session and client objects
self.session: Optional[ClientSession] = None
self.exit_stack = AsyncExitStack()
self.client = OpenAI(
api_key=os.getenv("OPENAI_API_KEY", ""),
base_url=os.getenv("OPENAI_BASE_URL", "https://api.deepseek.com")
)
self.model = "deepseek-chat"

async def connect_to_server(self, server_script_path: str):
"""Connect to an MCP server

Args:
server_script_path: Path to the server script (.py or .js)
"""
is_python = server_script_path.endswith('.py')
is_js = server_script_path.endswith('.js')
if not (is_python or is_js):
raise ValueError("Server script must be a .py or .js file")

command = "python" if is_python else "node"
server_params = StdioServerParameters(
command=command,
args=[server_script_path],
env=None
)

stdio_transport = await self.exit_stack.enter_async_context(stdio_client(server_params))
self.stdio, self.write = stdio_transport
self.session = await self.exit_stack.enter_async_context(ClientSession(self.stdio, self.write))

await self.session.initialize()

# List available tools
response = await self.session.list_tools()
tools = response.tools
print("\nConnected to server with tools:", [tool.name for tool in tools])

async def process_query(self, query: str) -> str:
"""处理用户输入,调用模型 + 工具"""
messages = [
{"role": "user", "content": query},
{"role": "system", "content": "你是一位优秀的职业交易员, 擅长通过价格行为对市场进行分析, 属于波段交易者"}
]
response = await self.session.list_tools()
available_tools = [
{
"type": "function",
"function": {
"name": tool.name,
"description": tool.description,
"parameters": tool.inputSchema
}
}
for tool in response.tools
]

final_text = []
tool_results = []

# 首次调用模型
completion = self.client.chat.completions.create(
model=self.model,
messages=messages,
tools=available_tools,
tool_choice="auto",
)

while completion.choices[0].finish_reason == "tool_calls":
choice = completion.choices[0]
tool_call = choice.message.tool_calls[0]
tool_name = tool_call.function.name
tool_args = eval(tool_call.function.arguments)

# 工具执行
tool_result = await self.session.call_tool(tool_name, tool_args)
tool_results.append({"tool": tool_name, "result": tool_result})

messages.append({
"role": "assistant",
"tool_calls": [tool_call]
})
messages.append({
"role": "tool",
"tool_call_id": tool_call.id,
"content": str(tool_result.content)
})

# 再次调用模型
completion = self.client.chat.completions.create(
model=self.model,
messages=messages,
tools=available_tools,
tool_choice="auto",
)

# 最终输出
final_text.append(completion.choices[0].message.content)
return "\n".join(final_text)


async def chat_loop(self):
"""Run an interactive chat loop"""
print("\nMCP Client Started!")
print("Type your queries or 'quit' to exit.")

while True:
try:
query = input("\nQuery: ").strip()

if query.lower() == 'quit':
break

response = await self.process_query(query)
print("\n" + response)

except Exception as e:
print(f"\nError: {str(e)}")

async def cleanup(self):
"""Clean up resources"""
await self.exit_stack.aclose()

async def main():
if len(sys.argv) < 2:
print("Usage: python client.py <path_to_server_script>")
sys.exit(1)

client = MCPClient()
try:
await client.connect_to_server(sys.argv[1])
await client.chat_loop()
finally:
await client.cleanup()

if __name__ == "__main__":
import sys
asyncio.run(main())

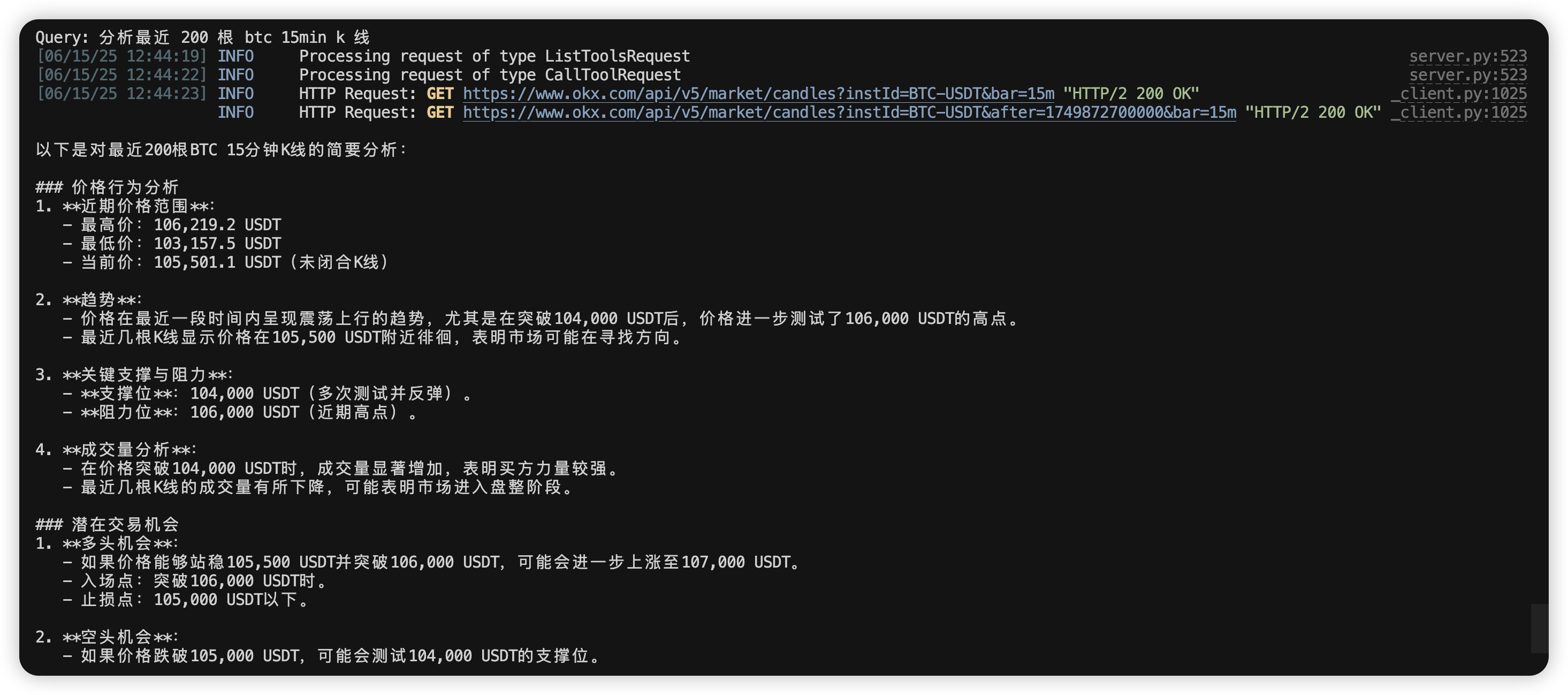

image-20250615124456036

image-20250615124540876
